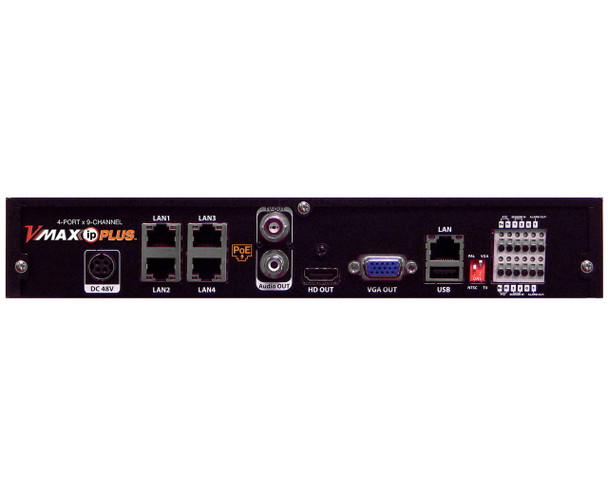

Digital Watchdog DW-VP94T4P 4 Channel PoE Network Video Recorder, 4TB HDD included

Part Number: DW-VP94T4P
Write a Review
  • Digital Watchdog DW-VP94T4P 4 Channel PoE Network Video Recorder, 4TB HDD included
  • Digital Watchdog DW-VP94T4P 4 Channel PoE Network Video Recorder, 4TB HDD included
  • Digital Watchdog DW-VP94T4P 4 Channel PoE Network Video Recorder, 4TB HDD included
  • Digital Watchdog DW-VP94T4P 4 Channel PoE Network Video Recorder, 4TB HDD included
Free shipping over $300 Free Shipping
Fast Shipping Fast Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Compression : H.264,
  • Pre-Installed Storage : 4 TB
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 5MP
  • Hard Drive Ports : 1 SATA Port
  • Max. Storage Capacity : 6 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 4 PoE Ports
  • Power Budget : 90.24 Watt


Digital Watchdog DW-VP94T4P 4 Channel PoE Network Video Recorder

The VMAX® IP Plus™ is an easy to use to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! The NVR offers unique features such as CCIP™ camera encryption and internal systems diagnostics, keeping your system healthy, secure and up to date. Combine with the DW Witness™ app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR.

Available with 4 PoE ports (expandable to 9 cameras), the NVRs can record and manage single-sensor IP cameras up to 5 Megapixel, with 80Mbps maximum throughput.

Key features:

  • Simple and Easy to Navigate VMAX GUI for the most User-Friendly Solution on the Market
  • Complete Installation, Setup and Camera Configuration in under Three Minutes!
  • Control any ONVIF Camera’s Setup and Features Remotely
  • DW Witness™ turns a smartphone or tablet into an additional surveillance camera
  • Pathfinder™ Auto Port Forwarding
  • Record and manage single-sensor IP cameras up to 5MP (2592x1920), with 80Mbps maximum throughput (equivalent to 9 2.1MP IP cameras)
  • Local Power for up to 4 IP Cameras via Resident PoE Switch
  • CCIP™ System Encryption Protects Your Surveillance System from Out of Network Attacks
  • Pivot™ Remote Monitoring Software
  • Mobile Application for iPhone, iPad, iPod, Android Smart Phones and Tablets and Apple TV
  • Automatic Device Discovery
  • Dual Stream Recording
  • Easy Drag and Drop Camera Management
  • Instant Backup During Playback
  • Full HD (1080p) Output for Local Live & Playback Display
  • Complete System Analysis with Real-Time System, Network and PoE Status Monitoring
  • True HD & VGA Simultaneous Output Support
  • 4 Sensor Input, 1 Alarm Relay Output
  • Up to 9ch Transaction Verification via TCP and USB-Serial
  • Email Event Notifications with Video Clip
  • Simple & Free DDNS Support for Remote Management
  • Easy Web-Based Client with Multi-User Access
  • Advanced H.264 Linux Embedded NVR
  • Simultaneous Live, Playback, Recording, Back-up, Network
  • NVR Health Check w/Email Notification
  • NVR Calculation and Auto Recording Configuration
  • Help Menu on Major Functions
  • Auto or Manual Firmware Upgrade Available
  • Automatic Private IP Addressing
  • NTP (Network Time Protocol)
  • Screen Saver to Protect Monitor Screen
  • Import/Export Configuration between Multiple NVRs
  • USB Mouse and GUI Control
  • 5 Year Limited Warranty
Compatible Accessories:
  • DW-POE496M PoE Switch 4 Channel Accessory
  • DW-POE896M PoE Switch 4 Channel Accessory
The entire system can be setup and configured in less than four minutes from power up. Using the user-friendly Startup Wizard, configure the NVR’s main functions, locate and register all your cameras and set them to record in less than four minutes and with no need for technical background!
The DW Witness™ app for iOS® and Android® KitKat instantly turns your smartphone or tablet into a video surveillance camera. Press the button on the app and start transmitting live video to your VMAX IP Plus™. It's a "black box" for personnel on patrol. (REQUIRES CURRENT VMAX IP PLUS™ FIRMWARE.)
Camera streams are protected when a user ID and password are used with an NVR. The additional CCIP™ (Closed Circuit IP) encryption is activated when the VMAX IP Plus™ system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting VMAX IP Plus™ NVR.
Monitor your complete system, including the network, communication, CPU and performance locally on the NVR for real-time analysis of your NVR, cameras and complete surveillance solution.

Model #

Supported Cameras

Storage Size

Up to 9 5MP IP Cameras
Up to 9 5MP IP Cameras
Up to 9 5MP IP Cameras

Compatible products

Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at with any design questions.

Additional Information

Alarm Input:
4 Channel
Audio Output:
1x Channel
Channel Capacity:
9 Channels
Compatible Integration (API):
Connection Type:
264 x 245 x 44 mm (10.39 x 9.65 x 1.73 in)
Hard Drive Ports:
1 SATA Port
LED Indicator:
Status LED
Max. Recording Resolution:
Max. Storage Capacity:
6 TB
Mobile Apps:
Android iOS iPad
Network Interface:
1x RJ-45
Number of PoE Ports:
4 PoE Ports
Operating Humidity:
20% to 90% RH
Operating System:
Embedded LINUX
Operating Temperature:
5 °C to 40 °C (41 °F to 104 °F)
PoE Standards:
IEEE 802.3af
Power Budget:
90.24 Watt
Power Supply:
48 VDC
Power for each port:
Pre-Installed Storage:
4 TB
Product Series:
Digital Watchdog VMAX IP Plus Series
Recorder Technology:
Network Video Recorder (NVR)
Relay Output:
1 Channel
Serial Interface:
1x RS485
USB Interface:
2x USB
Video Output:
1x VGA 1x HDMI
5-year Manufacturer Warranty
