Description

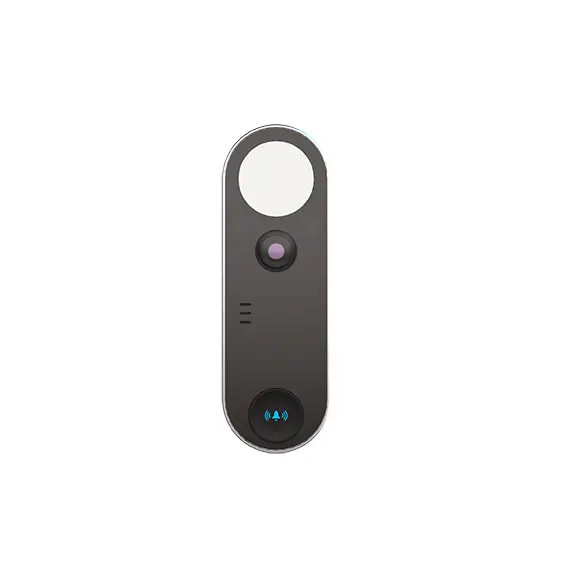

Digital Watchdog DWC-INTCAM02 IP Video Intercom Door Station
The DWC-INTCAM02 is a compact and powerful 2.1MP IP video intercom door station designed to enhance door access control with integrated video, audio, and intelligent detection features. With a built-in 2.3mm wide-angle lens and True WDR, it captures clear, full-scene video in varying lighting conditions. This NDAA-compliant device includes a microphone and speaker for two-way audio, supported by noise suppression and echo cancellation for crisp communication. It features person detection, tampering alerts, and a white light LED for color video even in low light. Designed for reliability in commercial and residential settings, the DWC-INTCAM02 offers local microSD recording, ONVIF compatibility, PoE or 12VDC power options, and IP65-rated weather resistance. It is an ideal solution for facilities needing secure, intelligent, and user-friendly entry control.
Key Features:
- 2.1MP 1/2.8” CMOS Sensor; delivers 1080p resolution video at 30fps for high clarity
- 2.3mm Fixed Wide-Angle Lens; provides a 170° diagonal field of view for complete entrance coverage
- True WDR (80dB); ensures visibility in high-contrast lighting scenes
- White Light and Smart IR LEDs; enables color or black-and-white imaging in low-light conditions
- Person Detection and Tampering Alerts; supports intelligent scene monitoring and alarm triggering
- Two-Way Audio with Built-In Microphone and Speaker; enables direct voice communication
- Echo Cancellation and Noise Suppression; improves voice clarity in all environments
- MicroSD Card Slot; supports local storage up to 256GB for event recording
- IP65-Rated Housing; ensures durability in outdoor and harsh conditions
- ONVIF Compliant; compatible with a wide range of third-party systems
- PoE and DC12V Support; provides flexible power options for simplified installation
- Web Interface and DW Spectrum® Integration; allows remote management and seamless VMS connectivity
- Built-In Doorbell and LED Indicator; enhances usability and accessibility
- NDAA Compliant; meets federal standards for secure installations
Downloads
Additional Information
|
Access Control Type:
|
Video Intercom
|
|
Dimensions:
|
5.9” x 1.96” x 1.17” (150 × 50 × 29.8mm)
|
|
Environmental:
|
Outdoor
|
|
Protection Code:
|
IP65
|
|
Resolution:
|
2.1MP
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
