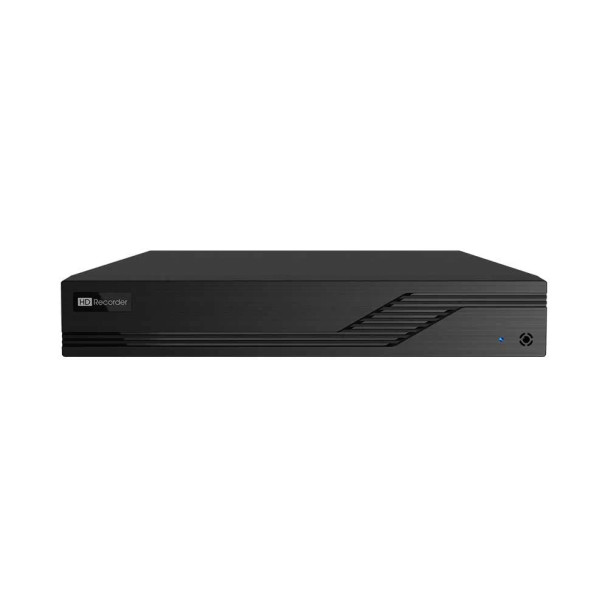

ENS ED8004H5-BN 4 Channel DVR Hybrid Video Recorder, 4in 1, Titanium
ED8004H5-BN is a 4 CH 1080P high definition DVR with ability to connect analog and IP cameras simultaneously, which adopt the standard H.265 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. ED8004H5-BN supports 4 CH video input, 1 CH audio input, simultaneous 4 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Key Features:
- 4 CH TVI / AHD/CVI 5MP/4MP/1080P/720P/WD1 video input
- 4 CH DVR supports 2 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input
- Adopt standard H.265 high profile compression format to get high-quality video at the much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-mode recording: manual / timed / motion / AI recording Playback : 4 CH simultaneously playback
- Search: time slice, time, event, tag search
- Express and flexible backup via USB, network, and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web or CMS: preview, playback, backup, PTZ, and configuration
- Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with mobile device
- Authorization management, log review and device status review
- Support 1080P output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smartphones with iOS and Andriod OS
Downloads
Datasheet
ENS-Security-ED8004H5-BN-Datasheet-A1
User Manual
ENS-Security-ED8004H5-BN-User-Manual-A1
Quick Start Guide
ENS-Security-ED8004H5-BN-Quick-Start-Guide-A1
Firmware
ENS-Security-ED8004H5-BN-Firmware-A1
Additional Information
|
Audio Compression:
|
G.711u
G.711a
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Certifications:
|
CE
FCC
RoHS
WEEE
REACH
|
|
Channel Capacity:
|
6 Channels
|
|
Compression:
|
H.265
H.264
|
|
Connection Type:
|
Wired
|
|
Hard Drive Ports:
|
1 SATA Port
|
|
Languages:
|
English
|
|
Max Power Consumption:
|
5 Watts
|
|
Max. FPS and Resolution:
|
25fps at 5MP (3K)
|
|
Max. Incoming Bandwidth:
|
16Mbps
|
|
Max. Recording Resolution:
|
5MP (3K)
|
|
Max. Storage Capacity:
|
10 TB
|
|
Mobile Apps:
|
iOS
Android
|
|
Network Interface:
|
1x RJ-45 100 Mbps Port
|
|
Outgoing Bandwidth:
|
40 Mbps
|
|
Power Supply:
|
12 VDC 1.5A
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
ENS Titanium Series
|
|
Recorder Technology:
|
Hybrid Recorder (DVR and NVR)
|
|
Remote Users:
|
Up to 5
|
|
Serial Interface:
|
1x RS485
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
1x VGA
1x HDMI
1x CVBS
|
