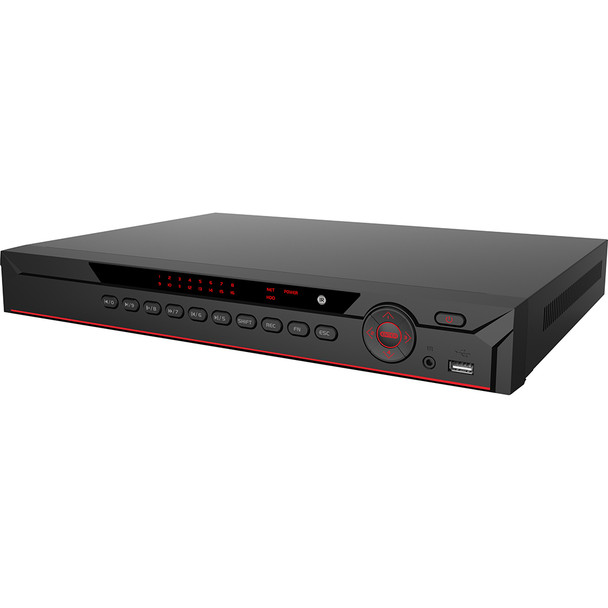

ENS NVR302A-16/16P-4KS2/L 16 Channel 4K Network Video Recorder with 16 PoE Ports

Part Number: NVR302A-16/16P-4KS2/L
Write a Review
$440.00
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : Smart H.265 Plus, Smart H.264 Plus, H.265, H.264,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Color : Black
  • Number of PoE Ports : 16 PoE Ports
  • Power Budget : 117 Watt

Description

ENS NVR302A-16/16P-4KS2/L 16 Channel 4K Network Video Recorder with 16 PoE Ports

Key Features:

  • · New UI interface with easier operation experience
  • · Smart H.265 / Smart H.264
  • · P2P remote surveillance, video play on the mobile device
  • · 16–ch@720P(30FPS), self-adaptive decoding capability
  • · Supports mainstream cameras of ONVIF and RTSP protocol
  • · VGA/HDMI simultaneous video output, the maximum resolution of HDMI is 4K
  • · Remote configuration and management of IPCs, such as setting parameters, acquiring information, and upgrading IPCs of the same model in batches
  • · DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer Protocol), NTP(Network Time Protocol), and DDNS(Dynamic Domain Name System)
  • Operation Interface: Web/operating in local GUI
  • Network Bandwidth 160 Mbps for access, 160 Mbps for storage, and 64 Mbps for forwarding
  • Third-Party Camera Access: ONVIF, RTSP
  • Compression Audio: G.711A/G.711U/PCM/G726
  • Network Access Standard: ONVIF (Profile S), CGI, SDK
  • Browser: Chrome, IE9 or above, Firefox

Compatible products

Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

4K Support:
4K Supported
Alarm Input:
4 Channel
Alarm Output:
2 Channel
Alternative SKUs:
NVR302A-16-16P-4KS2-L
Audio Compression:
G.711a G.711u G.726 PCM
Audio Input:
1x RCA
Audio Output:
1x RCA
Capacity for each disk:
up to 10TB
Certifications:
CE FCC
Channel Capacity:
16 Channels
Color:
Black
Compatible Integration (API):
ONVIF Profile S CGI Conformant SDK ONVIF 2.4
Compression:
Smart H.265 Plus Smart H.264 Plus H.265 H.264
Connection Type:
Wired
Dimensions:
375 x 327.4 x 53.8 mm (14.76 x 12.89 x 2.12 in)
Hard Drive Ports:
2 SATA Ports
Max Power Consumption:
10 Watts
Max. Recording Resolution:
8MP (4K)
Max. Storage Capacity:
20 TB
Mobile Apps:
iDMSS gDMSS
Mounting:
Desktop Mount
Network Interface:
1x RJ-45 10/100/1000 Mbps
Number of PoE Ports:
16 PoE Ports
Operating Humidity:
10% to 90%
Operating System:
Embedded LINUX
Operating Temperature:
-10 °C to 55 °C (14 °F to 131 °F)
Power Budget:
117 Watt
Power Supply:
100 to 240 V AC
Power for each port:
25.5W
Pre-Installed Storage:
No HDD included
Processor (CPU):
Industrial-grade Embedded Processor
Product Series:
ENS Lite Series
Rack Unit (U):
1U
Recorder Technology:
Network Video Recorder (NVR)
USB Interface:
2x USB 2.0
Video Output:
1x HDMI 1x VGA
Web Browser:
Chrome Internet Explorer Firefox
