Description

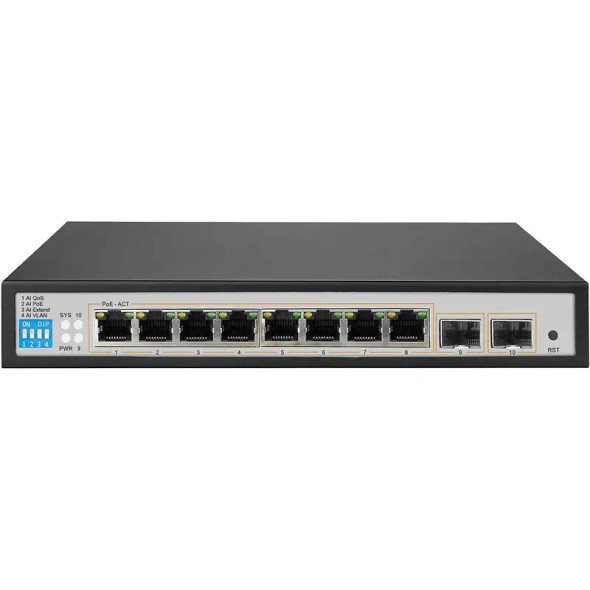

ENS POE-0802M 8+2 100Mbps PoE Switch
AI1010 is a 10-port PoE switch. It has 4 working modes, AI VLAN mode, AI Extend mode, AI PoE mode, AI QoS mode. All ports are free to communicate by default; In AI VLAN mode, 1 -8 ports are isolated from each other, which can effectively restrain network storms and improve network performance. In AI Extend mode, the effective transmission distance of 1-8 ports can reach 250 meters, which is suitable for remote monitoring and power supply. In the AI PoE mode, the switch automatically detects the working status of the PD device and finds that the device abnormal automatically restarts the device. In AI QoS mode, the video data will be processed preferentially when the device is congested to make the video smoother.
The device supports IEEE 802 af/at standard, which can automatically detect and identify the PDs that comply with the IEEE 802 af/at standard and provide power for them, so there is no need to worry about PoE or non-PoE devices that can damage private standards.
Key Features:
- 8 10/100Mbps PoE RJ45 port (port 1～port 8)
- 2 10/100Mbps non-POE RJ45 port(port 9~port 10)
- Transfer Rate: 100Mbps full Duplex, 10 or100Mbps Half Duplex
- Standard IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af
- Bandwidth: 2Gbps(no block)
- Network delay(100 to100Mbps): maximum 20 μs (using 64 byte packet)
- Frame filtering and transmission rate: 10M port maximum 14, 800pps, 100M port maximum
- Max power single port: 30W
- External power adapter: 120W
- Size (LxWxH): 184mm*94mm*27mm
- Weight: 0.95kg
- Operating Temperature: 0°~40°C
- Operating Humidity:: 10%~90%, Non-condensing
- Certifications CE/ROHS/FCC
