ENS Security XVR502AN-32-I3 Diamond 32 Channels Penta-brid DVR, 5MP Lite, 1U, 2 Sata Ports, Black

Brand: ENS Security
Part Number: XVR502AN-32-I3
Write a Review
Replacement: ENS Security XVR502AN-32-I3-V2 Diamond 32 Channels DVR, 5MP Lite, 1U, 2 Sata Ports, Black
Discontinued
  • ENS Security XVR502AN-32-I3 Diamond 32 Channels Penta-brid DVR, 5MP Lite, 1U, 2 Sata Ports, Black - 2
  • ENS Security XVR502AN-32-I3 Diamond 32 Channels Penta-brid DVR, 5MP Lite, 1U, 2 Sata Ports, Black - 3
  • ENS Security XVR502AN-32-I3
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : AI Coding, H.265, H.265 Plus, H.264, H.264 Plus,
  • Max. FPS and Resolution : 30fps at 3840 x 2160 (4K)
  • Video Output : 1x BNC 1x VGA 1x HDMI
  • Max. Recording Resolution : 6MP
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 16 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor

Related Products

ENS XVR504L-32-I2 32 Channel AI Digital Video Recorder, 1.5U, Smart H.265 - 1

ENS XVR504L-32-I2 32 Channel AI Digital Video Recorder, 1.5U, Smart H.265

XVR504L-32-I2
$758.00
  • Compression : AI Coding, H.265 Plus, H.265, H.264, H.264 Plus,
  • Pre-Installed Storage : No HDD included
  • Video Output : 2x HDMI 1x VGA
  • Max. Recording Resolution : 5MP (3K)
  • Hard Drive Ports : 4 SATA Ports
  • Max. Storage Capacity : 40 TB Storage Capacity
  • Color : Black
Free shipping over $300 Free Shipping
Digital Video Recorder (DVR) Digital Video Recorder (DVR)
Black Black
ENS XVR501H-08-4KL-I2 8 Channel 4K Digital Video Recorder, No HDD, Mini 1U, H.265 - 1

ENS XVR501H-08-4KL-I2 8 Channel 4K Digital Video Recorder, No HDD, Mini 1U, H.265

XVR501H-08-4KL-I2
$300.00
  • Compression : AI Coding, H.265 Plus, H.265, H.264, H.264 Plus,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 1 SATA Port
  • Max. Storage Capacity : 10 TB Storage Capacity
  • Color : Black
Free shipping over $300 Free Shipping
Digital Video Recorder (DVR) Digital Video Recorder (DVR)
Black Black

Description

ENS Security XVR502AN-32-I3 Diamond 32 Channels Penta-brid DVR, 5MP Lite, 1U, 2 Sata Ports, Black

ENS Diamond Series XVR502AN-32-I3 max. full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

Key Features:

  • H.265+/H.265 dual-stream video compression
  • Supports 16-channel AI-Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 32 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
  • Perimeter Protection
  • SMD Plus
  • Face recognition IoT & POS functionalities

Downloads

Additional Information

Audio Compression:
G.711a G.711u PCM
Audio Input:
1x RCA
Audio Output:
1x RCA
Capacity for each disk:
up to 8TB
Channel Capacity:
32 Channels
Color:
Black
Compatible Integration (API):
ONVIF CGI Conformant
Compression:
AI Coding H.265 H.265 Plus H.264 H.264 Plus
Connection Type:
Wired

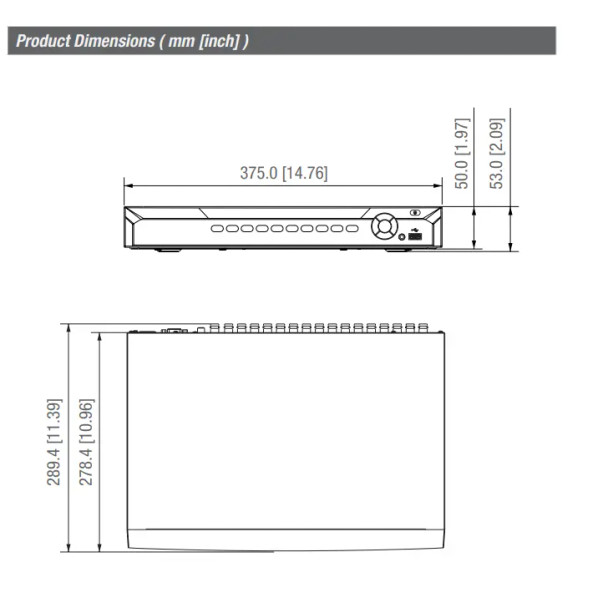

Dimensions:
375 x 289 x 53 mm (14.76 x 11.38 x 2.09 in)
Environmental:
Indoor
Hard Drive Ports:
2 SATA Ports
Max Power Consumption:
17 Watts
Max. FPS and Resolution:
30fps at 3840 x 2160 (4K)
Max. Incoming Bandwidth:
128Mbps
Max. Recording Resolution:
6MP
Max. Storage Capacity:
16 TB
Mounting:
Desktop Mount
Network Interface:
1x RJ-45 10/100/1000 Mbps
Operating Humidity:
0% to 90% RH
Operating System:
Embedded LINUX
Operating Temperature:
-10 °C to 55 °C (14 °F to 131 °F)
Outgoing Bandwidth:
128 Mbps
Power Supply:
12 VDC
Processor (CPU):
Industrial-grade Embedded Processor
Product Series:
ENS Diamond Series
Rack Unit (U):
1U
Recorder Technology:
Digital Video Recorder (DVR)
Serial Interface:
1x RS485
USB Interface:
1x USB 3.0 1x USB 2.0
Video Output:
1x BNC 1x VGA 1x HDMI
