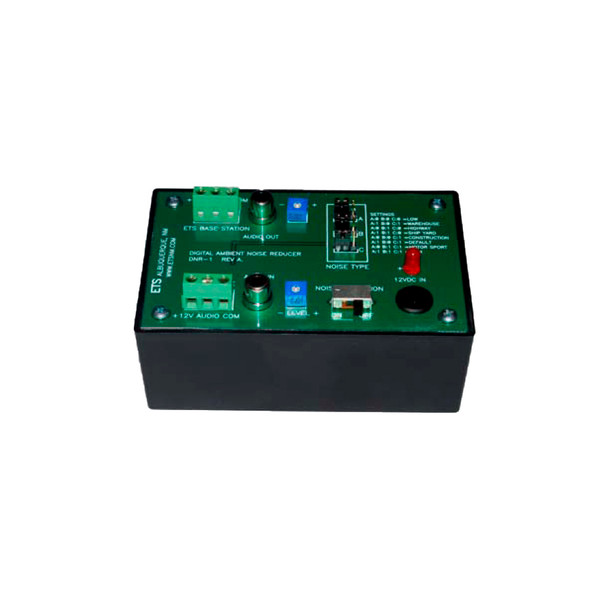

ETS DNR-1 High Performance DSP Based Noise Reduction Module

ETS DNR-1 High Performance DSP Based Noise Reduction Module

The DNR-1 is a single channel digital background noise reduction processor. It is designed to connect directly to any SM1 series microphone (or any line level input signal) and a DRV, I/P camera, etc. Note- the audio output of the DNR-1 is “line level″ (0db).

DNR-1 location and power The DNR-1 interface box is designed to be located next to a DVR or I/P camera. The DNR-1 (unless connected to an ETS interface box or base station) requires a 120VAC power source within 3 feet of its location. If this is not possible in your application, you can splice in up to 100 feet of 18 awg, 2 conductor cable to extend the distance between the AC power source and the DNR-1.

The DNR-1 is a DSP (Digital Signal Processor) based background noise reduction unit. It is designed to digitally screen out voice from other (back ground) sounds picked up by microphones. The DNR-1 is also effective in eliminating microphone pre-amplifier noise. The DNR-1is directly compatible with ETS microphones, base stations, other "line level" audio sources and connects directly to DVRs, I/P cameras, etc.

Key features:

• Standard RCA or 3.5mm jacks for connection to DVRs etc.
• Adjustable input and output “line Level″ level controls.
• ETS microphone or RCA line level input.
• ETS base station or RCA line level outputs.
• Euro-style connectors makes cable terminations fast and clean.
• 500-4Khz Frequency response
• Up to -40db noise reduction (depending on type of noise)
• LED power indicator.
• Power: 12VDC @ 100mA
• Reverse polarity protected.
• All power circuitry and cable runs protected with auto-reset type fuse.
• Black plastic ABS housing.
• Dimensions: L 5.3 x W 3.3 x H 1.6

Included:

• DNR-1 Processor
• 12 VDC AC adapter.
• 2 each 3' RCA or 3.5mm patch cables.
• Installation instructions.
