Description
ETS EDKS-4 4 Channel PoE IP Device Kill Switch

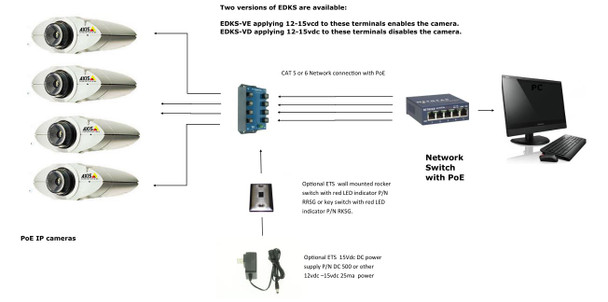

The EDKS-4 is a device designed to interrupt power and streaming of data from up to 4 a IP cameras or other Ethernet connected devices The EDKS-4 is placed in-line with the end device's CAT5 Ethernet cable. 12-15vdc is applied or removed to enable or disable the cameras depending on which version EDKS-4 is ordered. A switch can be mounted on the wall of the room along with an external power source to trigger the EDKS-4. Other equipment that outputs a 12-15vdc 100ma power source can also be used to trigger the EDKS-4
Key Features:
- CAT5 I/O Connectors
- Terminal block for trigger Voltage
- Trigger Voltage LED indicator
- IEEE802.af A and B mode compatible
- Supports 10/100M data rates
- Makes / breaks pins 1,2, 3 and 6 with relays.
- Trigger Voltage Power: 12-15VDC @ 100mA.
- Reverse polarity protected
- Black plastic ABS housing.
- Dimensions: L 3.3 x W 2.0 x H 1.6
- Weight 0.15lb
Two versions available:
- EDKS-4-VD. applying 12-15vdc disables cameras.
- EDKS-4-VE applying 12-15vdc enables cameras.
Wiring requirements:
2 conductor 22 gauge for connecting 12Vdc trigger voltage.
IMPORTANT
NOTE
All of ETS items are special built to order items. The moment the order is sent to ETS, they will start production/building. This will take around 1-2 weeks depending on the line of production, volume of your order, etc. Please plan accordingly. We will enter tracking as soon as it becomes available to us. If you have any questions feel free to contact the customer service team at customerservice@a1securitycameras.com or call us at 214-948-1300 x 411.
Popular Search
Additional Information
|
Accessory Type:
|
Kill Switch
|
|
LED Indicator:
|
|
|
Made in:
|
United States (USA)
|
|
Material:
|
ABS Plastic
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
