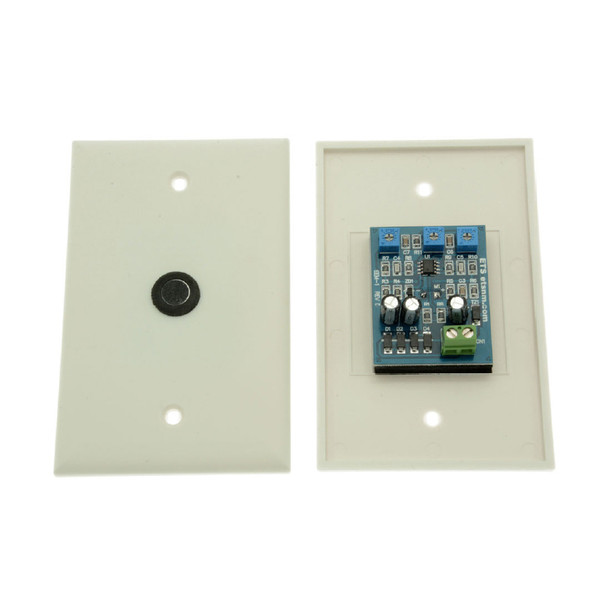

ETS EEM-1-LE2 High Performance Microphone - Surface Mount

The EEM-1 is a high performance substitute for the Eagle 2107/2102P microphone. It features higher sensitivity, adjustable gain and adjustable high cut and low cut filters. The EEM-1 also has lower distortion and higher gain and S/N ratio than the Eagle 2107/2102P.

Key Features:

  • Low noise MOSFET pre-amplifier
  • Omni-directional 25' pickup pattern
  • 100Hz-16Khz Frequency response.
  • Adjustable lo-cut filter: (100hz to 1Khz)
  • Adjustable hi-cut filter: (5Khz to16Kz)
  • Transient protected output.
  • 12v Eagle phantom power
  • S/N ratio: 60DB
  • Sensitivity –44db
  • Temperature range –25 to 85C.
  • Conformal coated PCB RFI filtering.
  • White single gang plate
  • Dimensions: L 4.7” x W 2.9” H 0.9”
  • Weight .1lbs
  • EEM-1 Microphone
  • Warning label.
  • Installation instructions.

Wiring requirements:

2 conductor shielded (with drain wire) 22

Available in these other form factors:

  • EEM-1-LE2 Surface mount version White or black
  • EEM-1-W Weather resistant Version
  • EEM-1-WPW Weather proof version
  • EEM-1-TR Tamper resistant
  • EEM-1-TRW Tamper and weather resistant


All of ETS items are special built to order items. The moment the order is sent to ETS, they will start production/building. This will take around 1-2 weeks depending on the line of production, volume of your order, etc. Please plan accordingly. We will enter tracking as soon as it becomes available to us. If you have any questions feel free to contact the customer service team at [email protected] or call us at 214-948-1300 x 411.

Additional Information

Accessory Type:
Surface Mount
