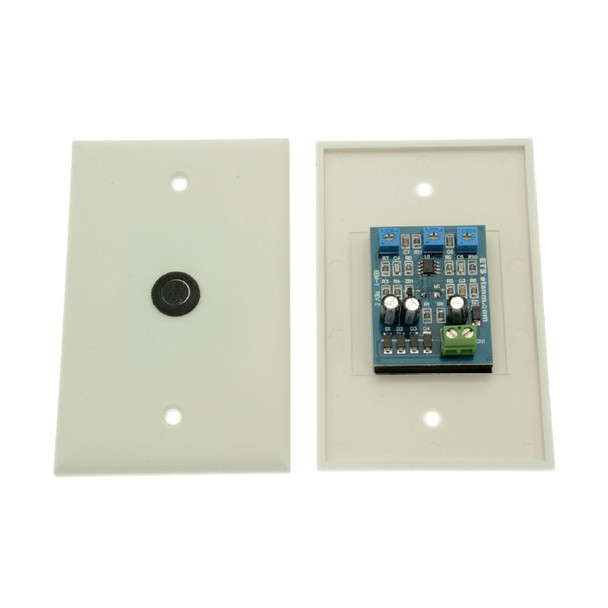

ETS EEM-1-WPW High Performance Microphone - Weatherproof

ETS EEM-1-WPW High Performance Microphone - Weatherproof

The EEM-1 is a high performance substitute for the Eagle 2107/2102P microphone. It features higher sensitivity, adjustable gain and adjustable high cut and low cut filters. The EEM-1 also has lower distortion and higher gain and S/N ratio than the Eagle 2107/2102P.

Key Features:

• Low noise MOSFET pre-amplifier
• Omni-directional 25' pickup pattern
• 100Hz-16Khz Frequency response.
• Adjustable lo-cut filter: (100hz to 1Khz)
• Adjustable hi-cut filter: (5Khz to16Kz)
• Transient protected output.
• 12v Eagle phantom power
• S/N ratio: 60DB
• Sensitivity –44db
• Temperature range –25 to 85C.
• Conformal coated PCB RFI filtering.
• White single gang plate
• Dimensions: L 4.7” x W 2.9” H 0.9”
• Weight .1lbs

Includes:

• EEM-1 Microphone
• Warning label.
• Installation instructions.

Wiring requirements:

2 conductor shielded (with drain wire) 22

Available in these other form factors:

• EEM-1-LE2 Surface mount version White or black
• EEM-1-W Weather resistant Version
• EEM-1-WPW Weather proof version
• EEM-1-TR Tamper resistant
• EEM-1-TRW Tamper and weather resistant
