Description

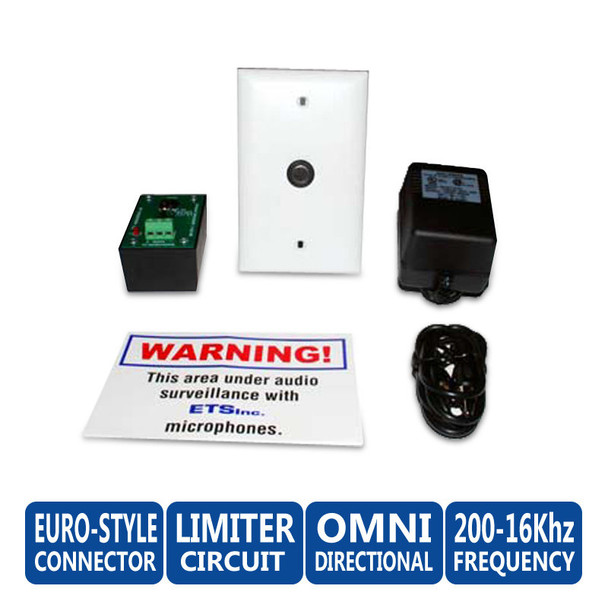

ETS SM5 Single Zone Audio Surveillance Kit
The SM5 is a single zone ETS audio surveillance system which can be connected to different devices such as an audio or video recorder, a CCTV monitor or remote monitoring equipment. It features an Omni directional electric element with a 25' range in every direction, it also comes equipped with a MOSFET low noise pre-amplifier, an unbalanced line level output, an adjustable gain, plus a treble boost circuit with selectable on/off features.
Great for use at schools, offices, and homes, the interface adapter is reverse polarity protected and fused, so no need to worry about shortcomings. It is also equipped with an LED indicator. The ETS SM5 Single Zone Audio Surveillance Kit can be surface or flush mounted on ceilings or walls. For flush mounting, cut a 2 ¼″ by 2 ¾“ hole in the wall or ceiling tile to allow room for the circuit board and mount the SM1 to the surface with screws. For surface mounting, purchase the SM1S surface mount adapter or use a single gang electrical box.
Key Features:
- Omni-Directional: 25' pickup pattern
- Power: 12VDC
- Treble Boost Circuit: selectable on/off
- Flush Mountable: can be mounted on a single gang electrical box
- Adjustable Gain: in both volume ranges
- Frequency Response: 200Hz-16 KHz
This product is also associated with:
ETS
IMPORTANT
NOTE
All of ETS items are special built to order items. The moment the order is sent to ETS, they will start production/building. This will take around 1-2 weeks depending on the line of production, volume of your order, etc. Please plan accordingly. We will enter tracking as soon as it becomes available to us. If you have any questions feel free to contact the customer service team at customerservice@a1securitycameras.com or call us at 214-948-1300 x 411.
Downloads
Popular Search
Additional Information
Audio Surveillance Type:
|
Audio Surveillance Kits
Microphone
|
Warranty:
|
1-year Manufacturer Warranty
|
