ETS STW3 Single Zone 2 way Audio Surveillance Kit

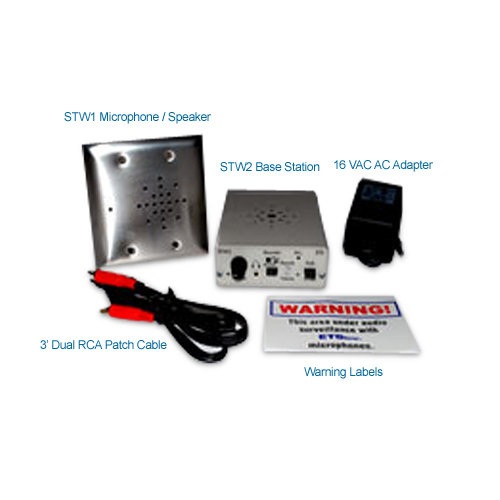

The STW3 is a two-way single zone audio surveillance system which is designed and manufactured by ETS which can be used for independent live audio monitoring or to be used with tape recorders with record/playback functions. The STW3 features a STW1 microphone and speaker, a STW2 base station, a 3-inch RCA patch cable, as well as a warning label and a 16 VAC AC adaptor. The STW3 consists of an optional call switch button and can come with a STW1-S surface mount, or a RM-4 rack mount.

To connect the Microphone from the ETS STW3 Single Zone 2 way Audio Surveillance Kit, run a 22 gauge, 2 conductor shielded cable (1,000 feet maximum length) between the STW1 and the STW2 base station. Keep the cable away from AC power sources, light fixtures and electrical equipment. For the Speaker, run a 22 gauge, 2 conductor shielded cable (1,000 feet maximum length) between the STW1 and the STW2. For the optional Call Switch, a 22 gauge, 2 conductor cables can be used. This is a contact closure type of connection so it doesn’t matter which side goes where, it is perfect for office or retail environments. & Once installed on a ceiling or surface the microphone will be hardly noticeable. The audio produced is clear and it delivers a 25’ radius of surveillance. The STW3 is easy to use and install for most applications and comes affordable for most users to save money.

• Omni-Directional: 25' pickup pattern
• Adjustable Gain: in both volume ranges
• Flush or Surface Mountable: can be mounted on a single gang electrical box or on any surface
• Power: 12VDC
