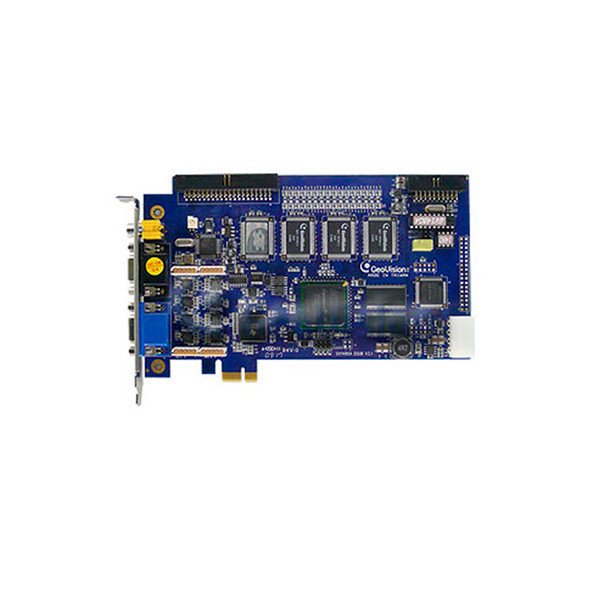

Geovision GV-1480A DVI 16-ch PCI-Express DVR card 480fps

Geovision GV-1480A DVI 16-ch PCI-Express DVR card

Geovision GV-1480A DVR Card is a real-time 480fps 16ch DVR capture card. Geovision GV-1480A features all the same software and hardware performance features as the other Geovision GV1480A DVR cards except that it utilizes the PCI-Express standard for connecting to the CPU motherboard. Geovision GV-1480A DVR Card is the top level dvr card in Geovision Combo Card series and combined with Geovision Multicam software (included) provides Feature rich, full control, high performance Video Surveillance and Security System management. Geovision GV-1480A supports professional CCTV Security Cameras, Geovision IP Products and Brand name IP Security Cameras when combined with the respective Geovision GV-NVR and GV-NVR 3rd party.

Geovision GV-1480A Main Features:

• Input Type: D-Type (DB15 x 2 Video) (DB9 x 2 Audio)
• Video inputs: 16 Cameras
• Audio inputs: 16 Channels
• TV output: 1x RCA
• Display Rate: 480fps @ D1
• Record Rate: (480fps @ cif or 240fps @ D1)
• Turbo Mode Record Rate (352fps @ D1)
• Geovision V8.3
• Expandable to 32ch with Geovision GV-NVR or 2 x GV-1480-16
• Video Res: Full D1, Half D1, CIF
• Compression: wavelet,MPEG-4, Geo MPEG-4, Geo MPEG-4 (asp), Geo H264
• Supports GV-NET/IO card
• Supports GV-Hybrid DVR card
• Dimensions: D-Type PCI Express: 212 x 99 (mm) / 8.35 x 3.90 (in)
• 3 Year Warranty
