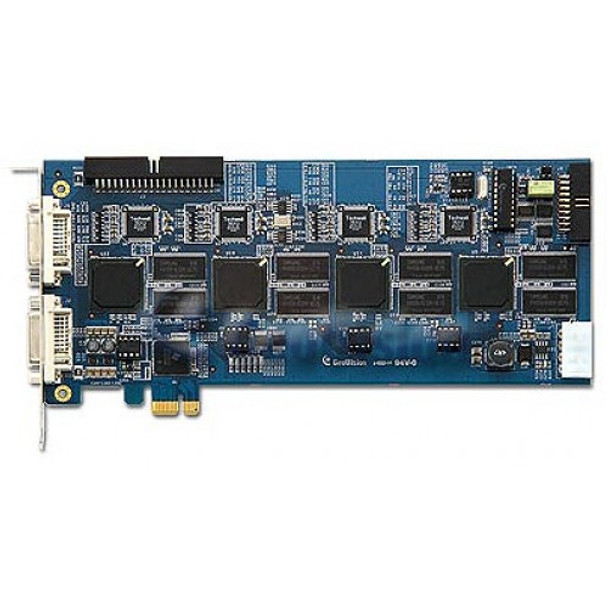

Geovision GV-4016 16-ch PCI-Express DVR Card 480fps @ D1

Brand: Geovision
Part Number: GV-4016
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check the other awesome products:
  • Geovision GV-4016 16-ch PCI-Express DVR Card 480fps @ D1
  • Geovision GV-4016 16-ch PCI-Express DVR Card 480fps @ D1
Free shipping over $300 Free Shipping
Technical Support Technical Support
2 Year Warranty 2 Year Warranty
  • Pre-Installed Storage : No HDD included

Customers Also Viewed

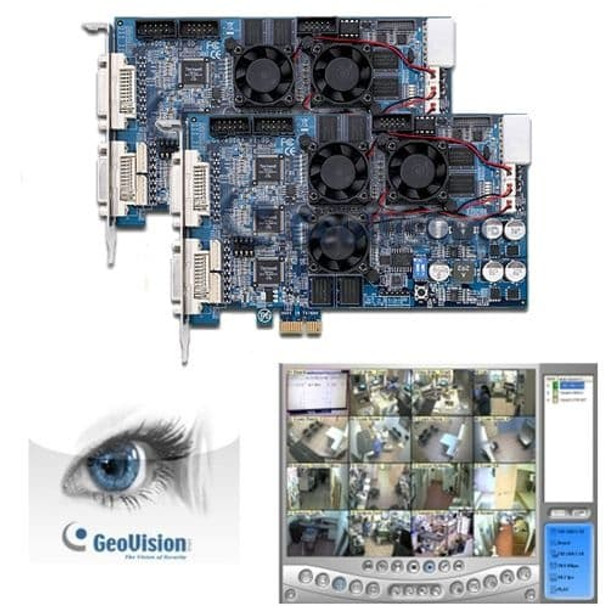

Geovision GV-4016 (2 x& GV-4008) Card provides up to& 16 video and& 16 audio channels, recording up to 480fps in total with H.264 hardware compression. The new technology of resolution is employed to enhance the live image of D1 without DSP Overlay. Even in screen divisions, the largest division can remain at the high-quality D1 resolution. These Geovision GV-4016 (2 x& GV-4008) DVR Cards can be utilized to view live and recorded video both locally and remotely. An unlimited amount of simultaneous users can log on to a Geovision GV-4016 (2 x& GV-4008) system and there is no extra software to purchase. All of Geovision DVR Cards include features like advanced motion detection, scheduled recording and much more. Geovision has become the markets #1 DVR capture card!

Geovision GV-4016 (2 x& GV-4008) Product Details:

•& Input Type:& D-Type
•& Video inputs:& 16 Cameras
•& Audio inputs:& 16 Channels
•& Display Rate:& 4800fps @ D1 Resolution&
•& Record Rate: 480fps @ D1 Resolution&
•& Hardware Compression: H.264
•& SoftwareCompression: wavelet,MPEG-4, Geo MPEG-4, Geo MPEG-4 (asp), Geo H264
•& Supports GV-NET/IO card
•& Supports GV-DSP
•& Supports GV-A16
•& Dimensions:D-type 169(W) x 106(H)mm&

Minimum System Requirements for& 1 x Geovision GV-4016 (2 x GV-4008& cards:

OS Supported
Windows XP / Windows Vista / Windows Server 2008
Does Not Support 64 Bit Windows&

Core 2& Quad 2.4GHz

2 x 1 GB Dual Channels

500 GB or above (recommended)

ATI Radeon X1300 PCI-E
NVIDIA& GeForce 7300 PCI-E&

9.0c or above

Additional Information

Channel Capacity:
16 Channels
Pre-Installed Storage:
No HDD included
Recorder Technology:
Digital Video Recorder (DVR)
2-year Manufacturer Warranty
