GeoVision GV-900-16 CH Digital Video Recorder Card

GV-900-16
Save
44%
GeoVision GV-900-16 CH Digital Video Recorder Card
Hover on image to enlarge
$1,240.00
$694.00
You save: $546.00 (44%)
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Description

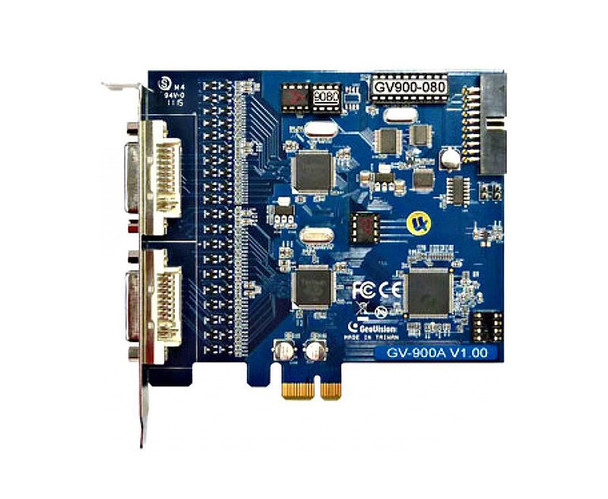

GeoVision GV-900-16 CH DVR Card
GeoVision GV-900A-16 CH DVR Card gives you a superior digital video and performance. This system is designed to accommodate up to 16 cameras, and allows the user to add additional IP cameras. The GeoVision GV-900-16 enables a recording up to 240 fps (NTSC) and 200fps (PAL) in total with H.264 software compression. The GeoVision GV-900-16 is so very versatile that it allows for other cards to be combined for added scalability. GeoVision GV-900A-16 features advanced motion detection, video loss detection, objects counting and privacy masks.
The system can also be programmed to send email notifications when the motion or alarm features are triggered. Remote viewing and configuration is possible through Windows PCs, iPhone and Android mobile phones. The GeoVision GV-900-16 CH DVR Card is available with GV-Series software also enables the user to remotely back up captured video from a PC.
Key Features of the GeoVision GV-900-16 CH DVR Card
  • Inputs: allows for 16 channel and 8 audio inputs
  • Resolution: display resolution at 240fps (NTSC) and 200fps(PAL)
  • Video Compression: supports H. 264 compression
  • Notification: allows sending email notification to the user
  • Remote View: allows remote viewing via Microsoft remote desktop
  • Security: strict access control to ensure security

This product is also associated with:
Geovision DVR Cards

Features

Manufacturer:
Geovision
Product Type:
Recorders
Warranty:
3-year Manufacturer Warranty
Discontinued:
no

Video Recorder Features

Number of camera channels:
  • 16 camera channels
Video Output:
  • No video output
Technical Specs

GeoVision GV-900A-16 CH DVR Card Specifications

  • Interface: PCI-E (x1)
  • Input Type: DVI
  • Video Input: 16
  • Audio Input: 8 Channels
  • Recording Rate CIF: NTSC 16-port: 240 fps, PAL 16-port: 200 fps
  • Recording Rate D1: NTSC 16-port: 120 fps, PAL 16-port: 100 fps
  • Display Rate CIF: NTSC 16-port: 240 fps, PAL 16-port: 200 fps
  • Display Rate D1: NTSC 16-port: 120 fps, PAL 16-port: 100 fps
  • Video Resolution: NTSC 704x480, 704x480 De-interlace, 640x480, 640x480 De-interlace, 352x240, 320x240, PAL 704x576, 704x576 De-interlace, 640x480, 640x480 De-interlace, 352x288, 320x240
  • Video Compression Format: Geo MPEG4, Geo H264
  • Audio Format: 16 kHz / 16-bit, 32 kHz / 16-bit)
  • GV-NET/IO Card Support: Yes
  • Dimensions (W x H): 120 x 112 mm / 4.7 x 4.4 in
  • Installation Guide: GV-900A
  • OS Supported: 32-bit Windows XP / Vista / 7 / 8 / Server 2008, 64-bit Windows 7 / 8 / Server 2008 R2 / Server 2012
  • CPU: Pentium 4, 3.0 GHz with Dual Core
  • RAM: 2 x 1 GB Dual Channels
  • HDD: 160 GB
  • Graphic Card: AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color
  • DirectX: 9.0c
Datasheets

Installation Guide (geovision-GV-900A-A1.pdf, 613 Kb) [Download]

Specsheet (geovision-Datasheet_900A-A1.pdf, 532 Kb) [Download]
