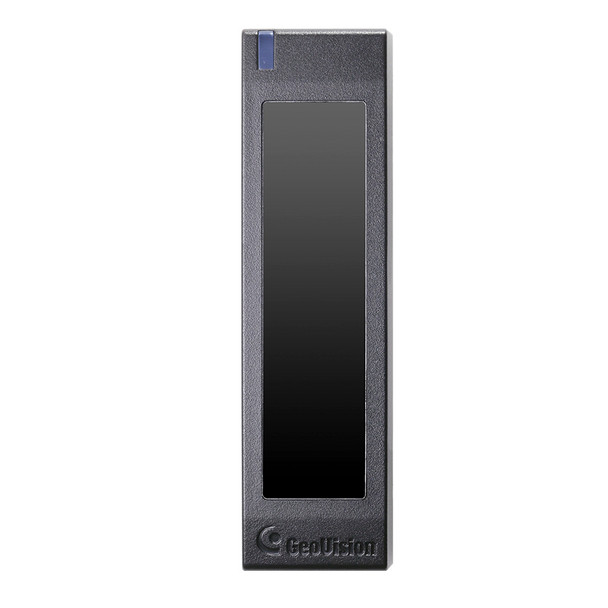

Geovision GV-DFR1352 Wiegand Door Frame Card Reader - 84-DFR1352-0200

Geovision GV-DFR1352 Wiegand Door Frame Card Reader - 84-DFR1352-0200

The GV-DFR1352 is a card reader designed to be installed on the door frame for recognizing identification cards. Featured with the Wiegand and RS-485 outputs, the unit can be connected to any standard access control panel. GV-DFR1352 comes with a weather sealed and IP66 compliant housing for outdoor use.

Key features:

• Weather-proof and IP66-compliant housing (for outdoor use)
• Wiegand interface supported
• RS-485 output: 9,600 bps, connect up to 8 GV-DFR1352 units
• 13.56MHz for ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic)
• Support for GV-Proximity Cards with GID (Geovision Identifier) to enhance security

Note:

• RS485 interface only supports GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26/34 Bits).
• GID is only supported by GV-DFR1352 (Rev. B) firmware V1.2 or later.
• UL 294 Attack Class Level 1 depends on other connected equipment.
• If you are using third-party cards or key fobs, the reader must be under UID mode.
• Specifications are subject to change without notice.

Ordering Number: 520-DFR1352-000

SKU: 84-DFR1352-0200
