Geovision GV-IOBOX 8+E Geovision GV-IO Box 8 Port with Ethernet Module - 84-IOBOX08-1E4U

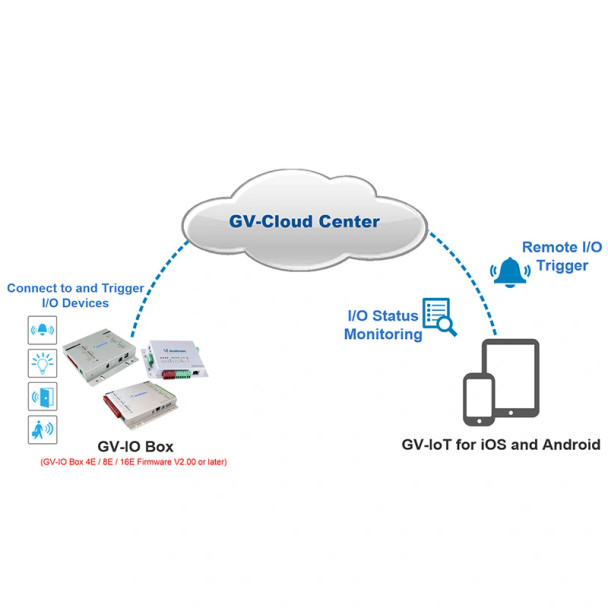

The GV-IO Box 8E, with network connectivity, provides 8 inputs and 8 relay outputs. It also supports both DC and AC output voltages, and provides a USB port for PC connection. The device can also be controlled remotely via the GV-IoT mobile app.
Key Features:
- 8 inputs and 8 outputs
- Up to 9 GV-I/O Box 4 / 8 /1 6 devices can be linked together
- A USB port for PC connection (max. 30V DC, 3A output)
- Up to 16 connections from GeoVision software are allowed to control one GV-I/O Box
- GV‐IoT mobile app for remote management (GV-IO Box 8E of firmware V2.00 or later required)
Downloads
Firmware
Geovision-400-IOBOX-8-E-Firmware-A1
Datasheet
Geovision-400-IOBOX-8-E-Datasheet-A1
Popular Search
Additional Information
|
Accessory Type:
|
Interface Box
|
|
Alarm Input:
|
8 Channel
|
|
Alternative SKUs:
|
400-IOBOX 8+E
GV-IOBOX 8+E
|
|
Color:
|
Gray
|
|
Dimensions:
|
135 x 28 x 145 mm (5.31 x 1.1 x 5.7 in)
|
|
Environmental:
|
Indoor
|
|
Mounting:
|
Wall Mount
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Number of Ports:
|
8 Ports
|
|
Relay Output:
|
8 Channels
|
|
Serial Interface:
|
1x RS485
|
|
USB Interface:
|
1x USB 2.0
|
