Description

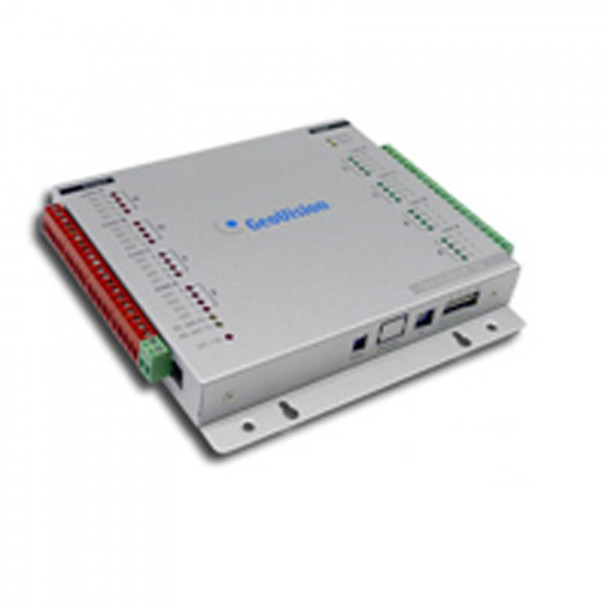

Geovision GV-IOBOX 16+E Geovision GV-IO Box 16 Ports with Ethernet Module - 84-IOBOX16-1E4U

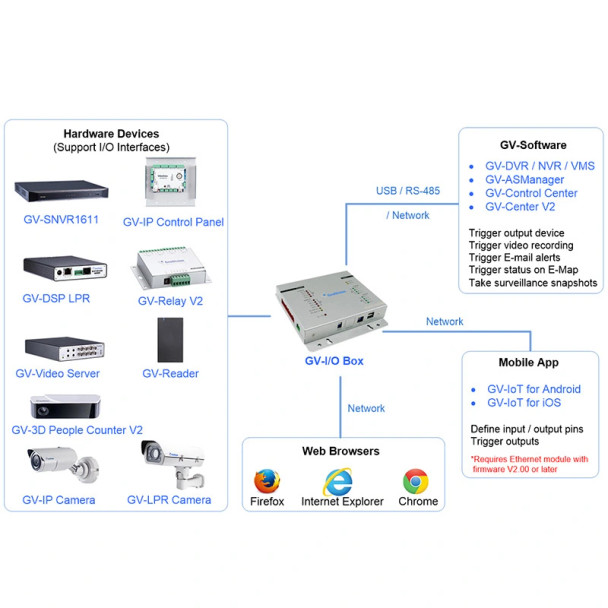

With network connectivity, GV-IO Box 16E offers 16 inputs and 16 relay outputs. It also has a USB connector for connecting to a computer and supports both DC and AC output voltages. The device can also be controlled remotely via the GV-IoT mobile app.
Key Features:
- 16 inputs and 16 outputs
- Up to 9 GV-I/O Box 4 / 8 /1 6 devices can be linked together
- A USB port for PC connection (max. 30V DC, 3A output)
- Up to 16 connections from GeoVision software are allowed to control one GV-I/O Box

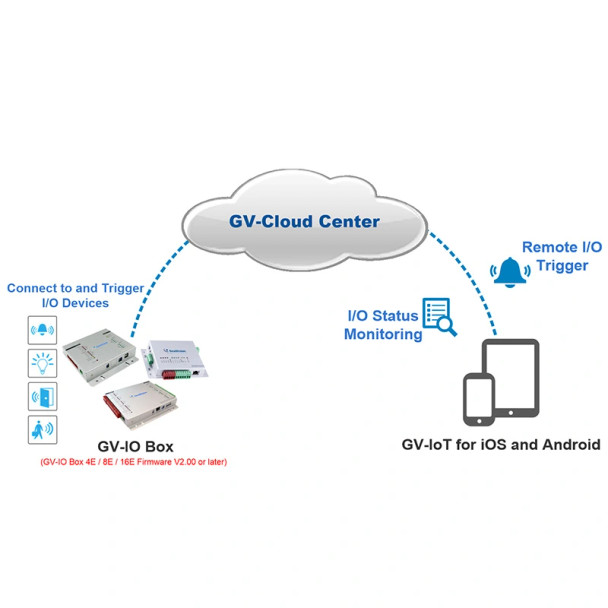

- GV‐IoT mobile app for remote management (GV-IO Box 16E of firmware V2.00 or later required)
Replacement of:
84-IOBOX16-12EU
Downloads
Datasheet
Geovision-84-IOBOX16-1E4U-Datasheet-A1
Popular Search
Additional Information
|
Accessory Type:
|
Interface Box
|
|
Alarm Input:
|
16 Channel
|
|
Alternative SKUs:
|
400-IOB16-16E
GV-IOBOX 16+E
|
|
Color:
|
Gray
|
|
Dimensions:
|
180 x 27 x 183 mm (7.09 x 1.06 x 7.2 in)
|
|
Environmental:
|
Indoor
|
|
Mounting:
|
Wall Mount
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Number of Ports:
|
16 Ports
|
|
Relay Output:
|
16 Channels
|
|
Serial Interface:
|
1x RS485
|
|
USB Interface:
|
1x USB 2.0
|
