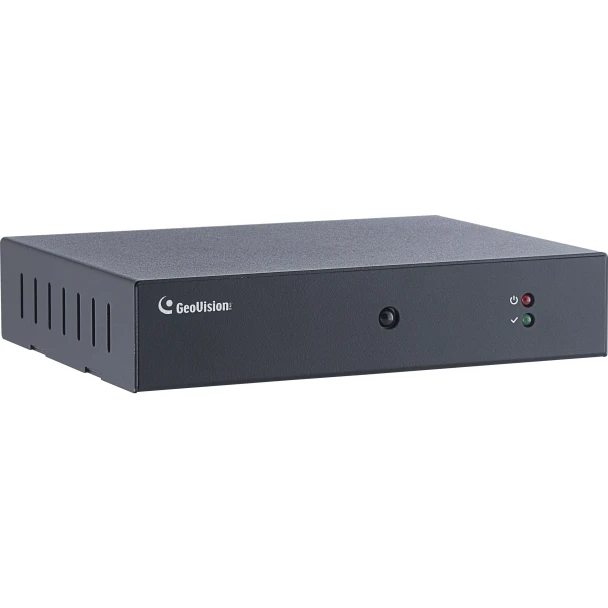

Geovision GV-IP Decoder Box Mini 4K HDMI Video Decoder - 89-IPDBXMN-K010

Geovision GV-IP Decoder Box Mini 4K HDMI Video Decoder - 89-IPDBXMN-K010

The Geovision GV-IP Decoder Box Mini decodes and loops up to 64 IP streams in a single division on an HDMI monitor, making it easy to review many cameras from one display. It supports third-party IP cameras via RTSP or ONVIF and automatically detects ONVIF-compliant devices on the same LAN. Administrators can monitor channels, capture snapshots of key moments, and pause live view during events, while GV-Joystick V2 / V3 can be connected for PTZ or Speed Dome control.

Built for flexible deployment, the unit decodes H.264 and H.265 streams at resolutions up to 8MP and outputs to HDMI at up to 4K (3840 x 2160). It connects over 10/100 Ethernet and accepts either a DC 12V adapter or PoE (IEEE 802.3af), while a USB 2.0 port handles snapshot storage and firmware upgrades. Remote camera and layout assignment is available through GV-Control Center and GV-Edge Recording Manager, and its compact indoor design fits neatly at any monitoring station.

Key Features:

• Decodes and loops up to 64 IP streams on a single HDMI monitor; centralizes live viewing from many cameras on one display.
• H.264 and H.265 decoding up to 8MP resolution at up to 60 fps; supports high-resolution modern camera streams.
• HDMI output up to 4K (3840 x 2160); delivers sharp, detailed images on large monitors.
• Third-party IP camera support via RTSP or ONVIF with auto-search; works across mixed-brand camera environments.
• PTZ and Speed Dome control via GV-Joystick V2 / V3; gives operators hands-on camera control.
• Powered by DC 12V or PoE (IEEE 802.3af); enables flexible installation with a single-cable power option.
• USB 2.0 for snapshot storage and firmware upgrades; simplifies maintenance and evidence capture.
• Compact indoor design (5.0 x 3.7 x 1.0 in); fits easily at any monitoring station.
