Description

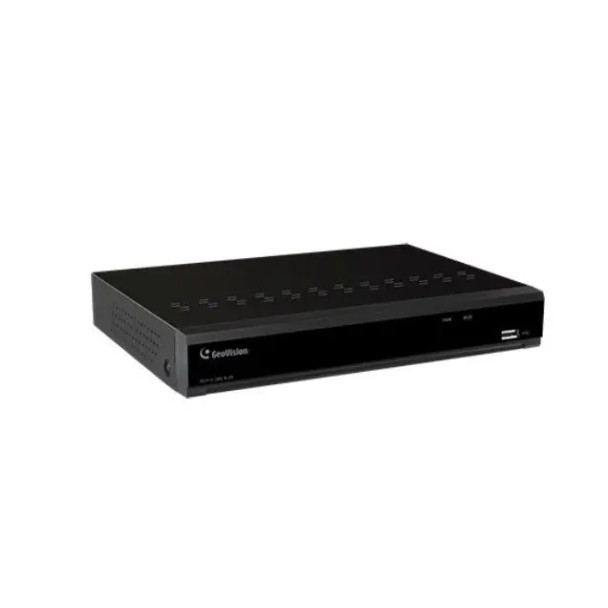

GeoVision GV-RNVRL810-P 8 Channel 8MP Network Video Recorder with No HDD Included – 84-RNRL81-P00U
The GeoVision GV-RNVRL810-P is a Linux-embedded standalone 8-channel network video recorder designed for high-performance IP surveillance with built-in AI analytics and 8-port PoE+ connectivity. It supports up to 8 IP cameras with resolutions up to 8MP and a total input bandwidth of 76Mbps. The system features real-time AI facial recognition with face tracking, attendance management, and repeat visitor search when connected to compatible GV-R Series IP cameras. It offers one HDMI (up to 4K) and one VGA output, along with two-way audio, alarm integration, and flexible remote access options via browser, PC software, and mobile app. A single SATA interface supports up to 10TB of internal storage (No HDD Included), and H.265/H.264 video compression ensures efficient storage utilization.
Key Features:
- 8 IP Channels; supports recording up to 8MP resolution
- No HDD Included; 1 SATA bay, supports up to 10TB
- Video Compression; H.265 / H.264 for efficient bandwidth and storage use
- AI Analytics; supports face detection, people/vehicle detection, intrusion, heat mapping, queue detection, and more via compatible GV-R Series cameras
- Facial Recognition; includes face tracking on E-Map, attendance tracking, and repeat visitor search
- PoE+ Ports; 8 x RJ-45, IEEE 802.3at for network and power
- Video Output; 1 HDMI (up to 4K), 1 VGA (up to 1080p)
- Alarm I/O; 8 alarm inputs and 1 output
- Audio Support; 1 RCA input and 1 RCA output for two-way audio
- Remote Access; via Web Browser (IE, Chrome, Firefox), GV-Control Center, and GV-Eye mobile app
- USB Ports; 2 x USB 2.0 (front and rear) for backup and mouse connection
- Network Interface; 1 x 10/100 Mbps RJ-45 Ethernet port
- Power Supply; AC 100–240V input, 48V DC output with 58W PoE power budget
- Compact Desktop Design; 300 × 215.3 × 52.5 mm, not rackmountable
- Smart Event Actions; includes recording, email alerts, FTP upload, and relay activation
Downloads
Popular Search
Additional Information
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
8 Channels
|
|
Compression:
|
H.265
H.264
|
|
Dimensions:
|
300 × 215.3 × 52.5 mm (11.8 × 8.4 × 2.0 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
1 SATA Port
|
|
Max. Storage Capacity:
|
10 TB
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
