Description

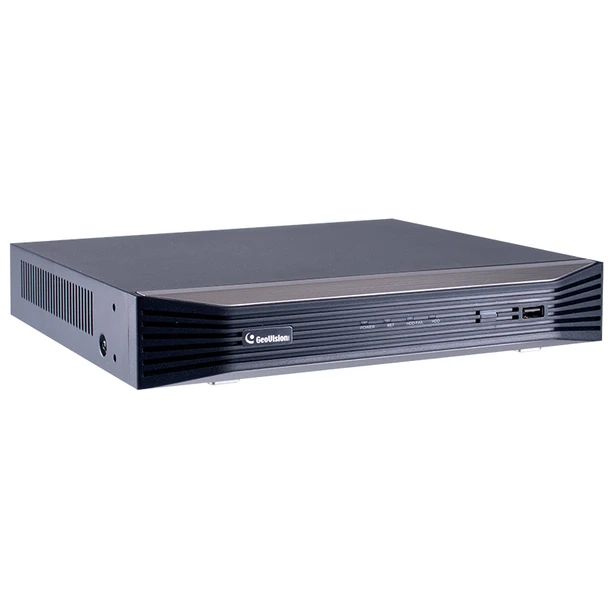

Geovision GV-SNVR0812 8-Channel 4K Network Video Recorder
The GV-SNVR0812 is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 8 channels of GV-IP devices for network surveillance. GV-SNVR0812 has 8 built-in PoE+ (IEEE 802.3at) ports, functioning to carry network and power to the connected IP devices. Featuring up to 4K resolution video output, GV-SNVR0812 eliminates the need of a separate PC to view and play back videos. Its USB ports allow you to insert USB flash drive to import or export system settings, update firmware, save snapshot files as well as back up video in AVI format.
Key Features:
- 8-Channel video recording
- Up to 3840 x 2160 resolution for each channel
- Dual streams support
- 8-Port PoE+ (IEEE 802.3at) for camera connection
- 4K (HDMI) / 1080P (HDMI/VGA) video output
- Two‐way audio
- 1 SATA HDD drawer (3.5") for up to 10 TB storage
- Automatic search and set-up for IP cameras
- Support for third‐party IP cameras through ONVIF and RTSP protocol
- Continuous, motion, scheduled and alarm-triggered recording
- Timeline playback
- Multi-channel playback
- Display of HDD status and system temperature
- DST (Daylight Saving Time) support
- NTP (Network Time Protocol) support
- GeoVision DDNS server support
- E-mail notification for recording error and password retrieval
- Recording export
- Remote live view through Web browser
- Fisheye dewarping
- Support for GV-Video Server through RTSP protocol
- PTZ control using GV-Joystick V2 or on-screen panel
- Smart device access (iOS and Android)
- Support for 14 languages
Packing List:
- GV-SNVR0812
- AC power cord
- AC/DC adapter (DC 52V, 1.8A, 100W)
- SATA cable
- HDD power cable
- Screw x 4 (for HDD)
- Foam foot
- USB mouse
- Rack mount kit (2 L‐shaped brackets + 4 screws)
- Download Guide
- Warranty card
Replacement of:
GV-SNVR1611
Popular Search
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
4K Support:
|
4K Supported
|
|
Alternative SKUs:
|
801-SNVR-0812
84-SNR0812-001U
VC-GV-NVR0812
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
8 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compression:
|
H.264
H.265
|
|
Dimensions:
|
260 x 240 x 44 mm (10.24 x 9.45 x 1.73 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
1 SATA Port
|
|
LED Indicator:
|
|
|
Languages:
|
English
Spanish
German
French
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
10 TB
|
|
Mobile Apps:
|
Android
iOS
|
|
Mounting:
|
Rack Mount
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Number of PoE Ports:
|
8 PoE Ports
|
|
Power Budget:
|
100 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Protocols:
|
DHCP
DynDNS
HTTP
NTP
RTSP
TCP
UDP
|
|
RAID:
|
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
USB Interface:
|
3x USB 2.0
|
|
Video Output:
|
1x HDMI
1x VGA
|
|
Warranty:
|
2-year Manufacturer Warranty
|
|
Web Browser:
|
Internet Explorer
|
