Description

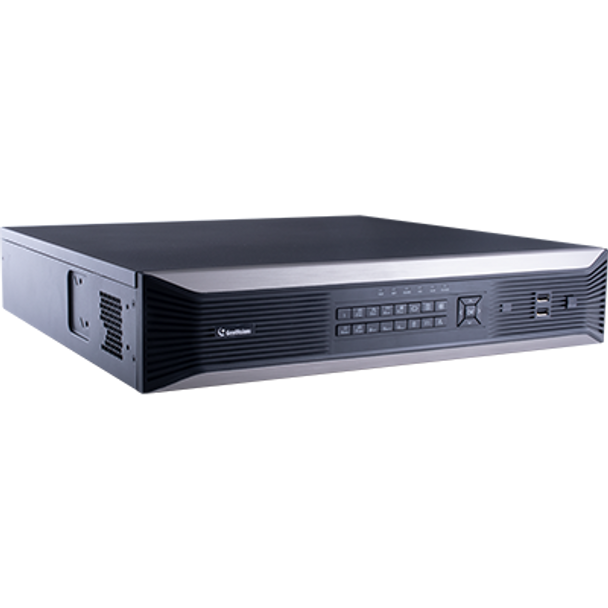

Geovision GV-SNVR6403 64 Channel 12MP 4K Linux Network Video Recorder, No HDD - 84-SNR643W-001U
GV-SNVR6403 is a standalone network video recorder with Linux embedded that records video files directly to the internal hard drive and supports up to 64 IP camera channels for video surveillance. Thanks to its up to 4K resolution video output, GV-SNVR6403 eliminates the need of a separate PC to view and play back video from the unit. It has USB ports that can be used to import or export system settings, update firmware, store snapshot files and back up videos.
Key Features:
- 32-channel video recording
- Up to 4000 x 3000 resolution for each channel
- Dual streams support
- Triple display from 3 video outputs: One 4K (HDMI), two 1080p (HDMI / VGA)
- 4 SATA HDD drawers (3.5″) for up to 40 TB storage
- Two‐way audio
- 16 sensor inputs and 4 alarm outputs
- Automatic search and set-up for IP cameras
- Support for third‐party IP cameras through ONVIF and RTSP protocol
- Continuous, motion, scheduled and alarm-triggered recording
- Timeline playback
- Multi-channel playback
- Display of HDD status and system temperature
- DST (Daylight Saving Time) support
- NTP (Network Time Protocol) support
- GeoVision DDNS server support
- E-mail notifications for recording error and password retrieval
- Recording export
- Remote live view through Web browser
- Smart device access (iOS and Android)
- Support for 12 languages
Note:
- Fisheye dewarping is only supported by GV-FER5702.
- Camera connection is not supported by GV-TMEB5800.
Replacement of:
84-SNR323W-001U
Downloads
User Manual
Geovision-GV-SNVR6403-User-Manual-A1
Quick Start Guide
Geovision-GV-SNVR6403-Quick-Start-Guide-A1
Datasheet
Geovision-84-SNR643W-001U-Datasheet-A1
Popular Search
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
16 Channel
|
|
Alarm Output:
|
4 Channel
|
|
Alternative SKUs:
|
GV-SNVR6403
801-SNVR-6403
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
FCC
CE
BSMI
RoHS
|
|
Channel Capacity:
|
64 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF
RTSP
|
|
Compression:
|
H.265
H.264
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
442 x 426 x 89 mm (17.4 x x16.8 x 3.5 in)
|
|
Disk Form Factor:
|
3.5"
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
8 SATA Ports
|
|
Languages:
|
Czech
English
French
German
Hungarian
Italian
Japanese
Polish
Portuguese
Spanish
Traditional Chinese
|
|
Material:
|
Metal
|
|
Max. FPS and Resolution:
|
30fps at 4000 x 3000
|
|
Max. Incoming Bandwidth:
|
384Mbps
|
|
Max. Recording Resolution:
|
12MP (4K)
|
|
Max. Storage Capacity:
|
80 TB
|
|
Mobile Apps:
|
GV-Eye
iOS
Android
|
|
Mounting:
|
Standalone
|
|
Network Interface:
|
2x RJ-45 10/100/1000 Mbps
|
|
Outgoing Bandwidth:
|
384 Mbps
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
Geovision SNVR Series
|
|
RAID:
|
RAID 1
RAID 5
RAID 0
RAID 6
RAID 10
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Serial Interface:
|
1x RS485
1x RS232
|
|
Special Recorder Features:
|
Fisheye Dewarp
|
|
USB Interface:
|
2x USB 2.0
1x USB 3.1
|
|
Video Output:
|
2x HDMI
1x VGA
|
|
Warranty:
|
2-year Manufacturer Warranty
|
