GeoVision UA-XVL1611 16 Channel 5MP Lite Hybrid Digital Video Recorder with No HDD Included – 84-XVL1611-UA0U

GeoVision UA-XVL1611 16 Channel 5MP Lite Hybrid Digital Video Recorder with No HDD Included – 84-XVL1611-UA0U

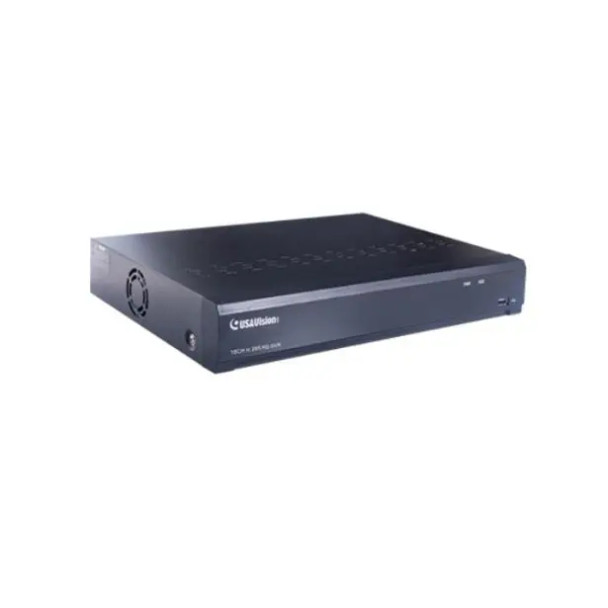

The GeoVision UA-XVL1611 is a compact 16-channel hybrid digital video recorder engineered for high-efficiency surveillance combining HD analog and IP camera inputs. Supporting up to 20 total channels (16 analog + 4 IP), this DVR delivers up to 5MP-Lite recording at 12fps and 4MP-Lite at 16fps per channel. Built-in AI features include facial recognition, perimeter protection, people and vehicle classification, and behavior analytics when used with compatible cameras. The unit supports H.265/H.264 video compression, one HDMI (up to 4K) and one VGA output, and provides 1 SATA bay supporting up to 10TB. Ideal for professional monitoring environments, the UA-XVL1611 integrates intelligent video features with reliable performance.

Key Features:

• 16 Analog Channels; supports TVI, AHD, CVI, CVBS formats
• Up to 20 Channels Total; 16 analog plus 4 IP inputs
• No HDD Included; 1 SATA interface, supports up to 10TB
• Video Compression; H.265 / H.264 for optimized bandwidth and storage
• Recording Resolution; up to 5MP Lite @12fps, 4MP Lite @16fps, 1080P @15fps
• Display Output; 1 HDMI (up to 4K), 1 VGA (up to 1080p)
• AI Analytics; supports face recognition, people/vehicle detection, queue monitoring, and heat mapping
• Smart Playback; intelligent search features enhance video review
• Audio Support; 4 RCA inputs, 1 RCA output, one-way audio
• Alarm I/O; 4 inputs and 1 output for external triggers
• Remote Access; via web browser, mobile app (GV-Eye), or PC software
• Network Protocols; ONVIF, RTSP, HTTP, TCP, IPv4/IPv6, HTTPS with SSL
• USB Ports; 1× USB 2.0 (front), 1× USB 3.0 (rear)
• Power Supply; DC 12V, 2.0A, ≤9W (excluding HDD)
• Operating Conditions; -10°C to 50°C, up to 90% RH non-condensing
• Compact Desktop Design; 300 × 219.9 × 51.8 mm, non-rackmount enclosure
