Description
Geovision UVS Expansion System for UVS Storage System, 24 Bay, No HDD - 94-EXPANSI-0001

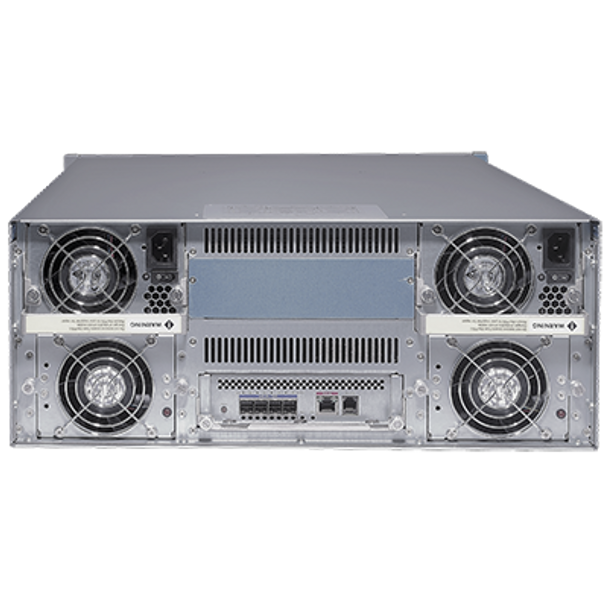

GV-Expansion System is a 19-inch 4U rackmount JBOD unit with optimized solutions for servers and external storage systems. It features the latest SAS 3.0 12Gb/s interface and designed to fit in with the environments which need highly reliable and relentless data growth.
GV-Expansion System incorporates the latest enhancements in SAS along with LSI DataBolt bandwidth optimizer technology (EDFB, End Device Frame Buffering). Using DataBolt, it delivers optimized throughput by allowing users to gain 12Gb/s host speeds with current-generation 6Gb/s drives. It is also a versatile SAS3 / SATA3 disk expansion system, ideal for high capacity and scalability storage in IT demands. GV-Expansion System offers GUI management to monitor enclosure environmental conditions through a remote connection.
Key Features:
- 4U,24-bay hot-swappable SAS III / SATA III HDD or SSD drivers for data storage
- LSI DataBolt bandwidth optimizer technology
- Fully redundant & hot pluggable designs: power supplies and fans
- Industry-standard SCSI enclosure services to monitor enclosure and disk environmental conditions
- S.E.S. support for standard enclosure management
- System LED indications
- Monitoring: Fan speed, power supply, system voltage and system temperature
- System alarm
- Storage capacity up to 240 TB (with 10 TB HDD)
Downloads
Popular Search
Additional Information
Accessory Type:
|
SAN (Storage Area Network)
|
Alternative SKUs:
|
UVS-Expansion Server
860-EXP-024
|
Capacity for each disk:
|
up to 10TB
|
Certifications:
|
CE
FCC
RoHS
BSMI
|
Color:
|
Black
|
Dimensions:
|
482 x 176 x 607 mm (18.98 x 6.92 x 23.90 in)
|
Drive Interface:
|
SATA III
|
Environmental:
|
Indoor
|
Hard Drive Ports:
|
24 SATA Ports
|
Material:
|
Metal
|
Max. Storage Capacity:
|
240 TB
|
Mounting:
|
Rack Mount
|
Pre-Installed Storage:
|
No HDD included
|
Processor (CPU):
|
Intel Xeon Processor
|
Protocols:
|
iSCSI
|
RAID:
|
JBOD
RAID 0
RAID 1
RAID 3
RAID 5
RAID 6
RAID 10
RAID 50
RAID 60
|
Rack Unit (U):
|
4U
|
USB Interface:
|
4x USB 3.0
|
Video Output:
|
1x VGA
|
