Description

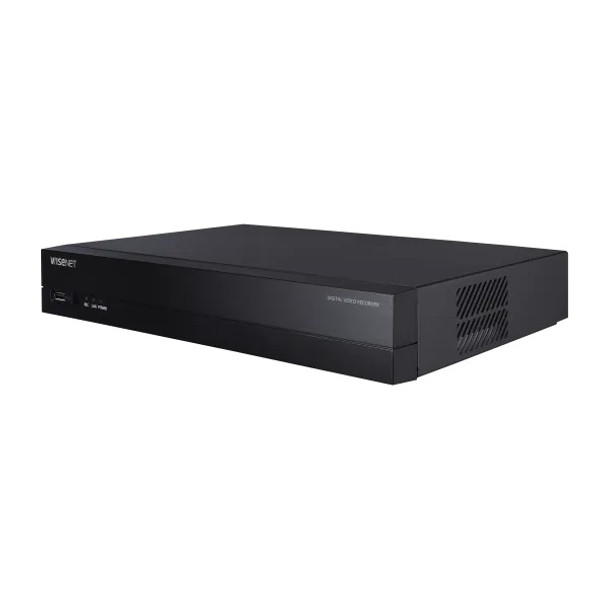

Hanwha Techwin HRX-434-2TB 4 Channel HD-TVI/HD-CVI/AHD/Analog + 2 Channel IP DVR, Up to 32FPS @ 8MP, 2TB HDD
Wisenet HD+ Pentabrid DVR AHD (up to 8MP), TVI (up to 8MP), CVI (up to 5MP), CVBS and IP (up to 8MP), • Max. Analog 4CH + NW 6CH, up to 8MP, 8/8fps@8MP, 12/12fps@5MP recording (frame rate at higher resolutions will vary), triple codec H.265/H.264/MJPEG, Recording Bandwitth Max. 30Mbps, Playback Bandwith 32Mbps. 4CH audio input/ 1CH audio output, 4 alarm input and 2 relay output, coaxial control, HDMI/VGA video output, 1 X spot monitor output, QR code , Up to 1 SATA HDDs (6TB/HDD)
Key Features:
- 5-in-1 4CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 6CH (Maximum 4 Channel analog and total maximum 6 CH network camera supported), up to 8MP
- H.265, H.264, MJPEG codec
- 8@8MP, 12fps@5MP recording
- Coaxial control
- 1 SATA HDDs (up to 6TB)
- HDMI/VGA Dual monitor output
- P2P service (QR code connect) for easy mobile app use
Replacement of:
HRX-420-2TB
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-HRX-434-Quick-Start-Guide-A1
Popular Search
Additional Information
|
4K Support:
|
4K Supported
|
|
Channel Capacity:
|
6 Channels
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Pre-Installed Storage:
|
2 TB
|
|
Product Series:
|
Samsung Hanwha WiseNet HD+ Series
|
|
Recorder Technology:
|
Hybrid Recorder (DVR and NVR)
|
