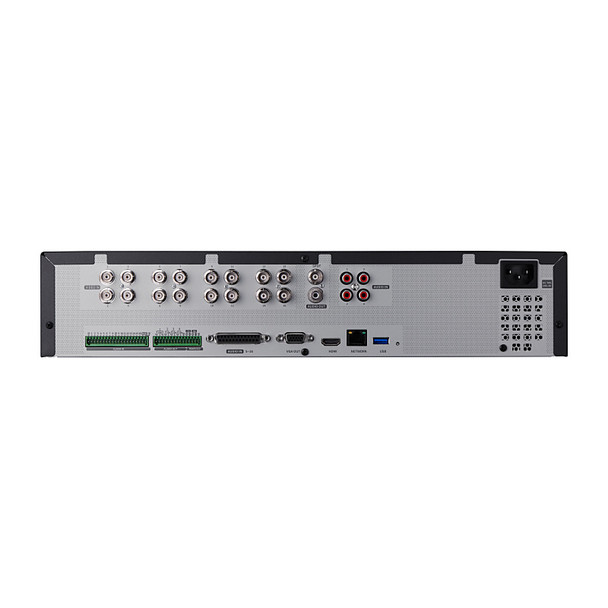

Hanwha Vision HRX-1635-12TB 16 Channel 8MP Pentabrid DVR with 12TB HDD Included

Part Number: HRX-1635-12TB
Write a Review
  • Hanwha Vision HRX-1635-12TB 16 Channel 8MP Pentabrid DVR with 12TB HDD Included
  • Hanwha Vision HRX-1635-12TB 16 Channel 8MP Pentabrid DVR with 12TB HDD Included
  • Hanwha Vision HRX-1635-12TB 16 Channel 8MP Pentabrid DVR with 12TB HDD Included
  • Hanwha Vision HRX-1635-12TB 16 Channel 8MP Pentabrid DVR with 12TB HDD Included
$2,807.00
$2,126.52
— You save $680.48
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.265, H.264, MJPEG,
  • Pre-Installed Storage : 12 TB
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 8 SATA Ports
  • Max. Storage Capacity : 48 TB Storage Capacity
  • Color : Black

Description

Hanwha Vision HRX-1635-12TB 16 Channel 8MP Pentabrid DVR with 12TB HDD Included

The Hanwha Vision HRX-1635-12TB is a robust 16-channel Pentabrid DVR built for hybrid surveillance environments combining analog and IP technologies. It supports AHD, HDTVI, HDCVI, CVBS, and IP inputs, with a total of up to 18 channels (16 analog + 2 IP). With 12TB HDD Included and scalability up to 48TB across 8 SATA drives, the system ensures reliable storage for long-term video retention. It supports recording resolutions up to 8MP and uses H.265, H.264, and MJPEG compression to optimize storage space without sacrificing image quality. Designed for operational efficiency, the unit provides HDMI and VGA outputs with support for simultaneous 4K and Full HD display. It also features smart event detection, intelligent search capabilities for network cameras, and seamless remote access via Wisenet Mobile, WebViewer, and Wisenet Viewer.

Key Features:

  • 16 Channels; supports 16 analog inputs and 2 additional IP channels, up to 18CH total
  • 8MP Recording Resolution; delivers ultra-high-definition video for critical surveillance
  • 12TB HDD Included; supports scalable storage up to 48TB with 8 SATA drive bays
  • H.265, H.264, and MJPEG Compression; maximizes recording efficiency and storage usage
  • HDMI and VGA Outputs; allows dual monitor support with up to 4K and Full HD resolutions
  • 128Mbps Recording Bandwidth; ensures smooth performance for multi-channel recording
  • Smart Event Triggers; includes motion detection, tampering, video loss, and IP camera analytics
  • Smart Search (Network Cameras); enables fast, event-based review of recorded footage
  • Coaxial Control Support; allows PTZ functionality over analog video formats
  • USB and Network Backup; supports secure export in multiple file formats
  • Remote Access; via Wisenet Mobile app, WebViewer, SSM, and Wisenet Viewer platforms
  • Embedded Linux OS; offers stability and 24/7 operational reliability
  • 2-Way Audio Support; includes 16 audio input channels and 1 output for enhanced monitoring
  • Advanced Security Features; includes user permissions, encryption, IP filtering, and access logs

Additional Information

Capacity for each disk:
up to 6TB
Channel Capacity:
16 Channels
Color:
Black
Compression:
H.265 H.264 MJPEG
Connection Type:
Wired
Dimensions:
440 x 88 x 384.8 mm (17.32 x 3.46 x 15.15 in)
Hard Drive Ports:
8 SATA Ports
Max. Recording Resolution:
8MP (4K)
Max. Storage Capacity:
48 TB
Operating Humidity:
20% to 85% RH
Operating Temperature:
0 °C to 40 °C (32 °F to 104 °F)
Power Supply:
100 to 240 V AC
Pre-Installed Storage:
12 TB
Recorder Technology:
Digital Video Recorder (DVR)
