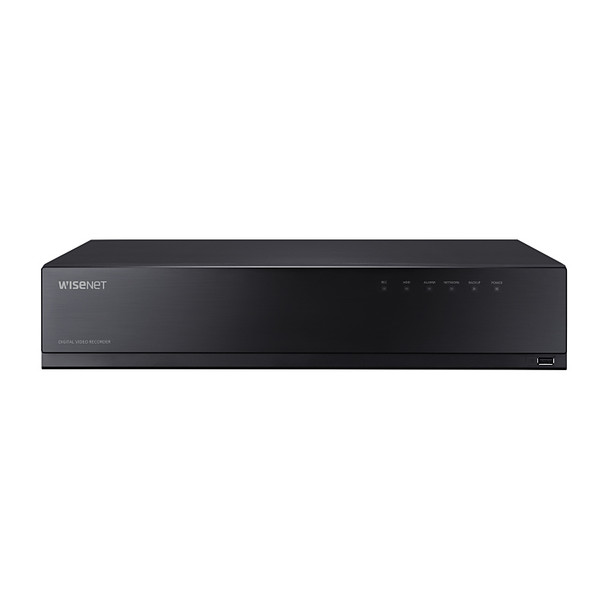

Hanwha Vision HRX-1635-16TB 16 Channel 8MP Pentabrid DVR with 16TB HDD Included

Part Number: HRX-1635-16TB
Write a Review
  • Hanwha Vision HRX-1635-16TB 16 Channel 8MP Pentabrid DVR with 16TB HDD Included
  • Hanwha Vision HRX-1635-16TB 16 Channel 8MP Pentabrid DVR with 16TB HDD Included
  • Hanwha Vision HRX-1635-16TB 16 Channel 8MP Pentabrid DVR with 16TB HDD Included
  • Hanwha Vision HRX-1635-16TB 16 Channel 8MP Pentabrid DVR with 16TB HDD Included
$3,287.00
$2,407.14
— You save $879.86
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.265, H.264, MJPEG,
  • Pre-Installed Storage : 16 TB
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 8 SATA Ports
  • Max. Storage Capacity : 48 TB Storage Capacity
  • Color : Black

Description

Hanwha Vision HRX-1635-16TB 16 Channel 8MP Pentabrid DVR with 16TB HDD Included

The Hanwha Vision HRX-1635-16TB is a high-capacity 16-channel Pentabrid DVR designed for professional surveillance environments that require both analog and IP camera compatibility. Supporting AHD, HDTVI, HDCVI, CVBS, and IP inputs, it offers up to 18 total channels (16 analog + 2 IP). With 16TB HDD Included and expandable storage up to 48TB via 8 SATA bays, it delivers reliable, long-term video retention. This system supports up to 8MP resolution and uses H.265, H.264, and MJPEG compression technologies to enhance storage efficiency. Dual HDMI and VGA outputs support simultaneous 4K and Full HD display. With features like smart event detection, intelligent search for network cameras, and multiple remote access options, the HRX-1635-16TB offers flexibility and powerful performance for a wide range of surveillance needs.

Key Features:

  • 16 Channels; supports 16 analog inputs and 2 additional IP channels, up to 18CH total
  • 8MP Recording Resolution; delivers ultra-high-definition video for critical surveillance
  • 16TB HDD Included; supports scalable storage up to 48TB with 8 SATA drive bays
  • H.265, H.264, and MJPEG Compression; maximizes recording efficiency and storage usage
  • HDMI and VGA Outputs; allows dual monitor support with up to 4K and Full HD resolutions
  • 128Mbps Recording Bandwidth; ensures smooth performance for multi-channel recording
  • Smart Event Triggers; includes motion detection, tampering, video loss, and IP camera analytics
  • Smart Search (Network Cameras); enables fast, event-based review of recorded footage
  • Coaxial Control Support; allows PTZ functionality over analog video formats
  • USB and Network Backup; supports secure export in multiple file formats
  • Remote Access; via Wisenet Mobile app, WebViewer, SSM, and Wisenet Viewer platforms
  • Embedded Linux OS; offers stability and 24/7 operational reliability
  • 2-Way Audio Support; includes 16 audio input channels and 1 output for enhanced monitoring
  • Advanced Security Features; includes user permissions, encryption, IP filtering, and access logs

Additional Information

Capacity for each disk:
up to 6TB
Channel Capacity:
16 Channels
Color:
Black
Compression:
H.265 H.264 MJPEG
Connection Type:
Wired
Dimensions:
440 x 88 x 384.8 mm (17.32 x 3.46 x 15.15 in)
Hard Drive Ports:
8 SATA Ports
Max. Recording Resolution:
8MP (4K)
Max. Storage Capacity:
48 TB
Operating Humidity:
20% to 85% RH
Operating Temperature:
0 °C to 40 °C (32 °F to 104 °F)
Power Supply:
100 to 240 V AC
Pre-Installed Storage:
16 TB
Recorder Technology:
Digital Video Recorder (DVR)
