Description

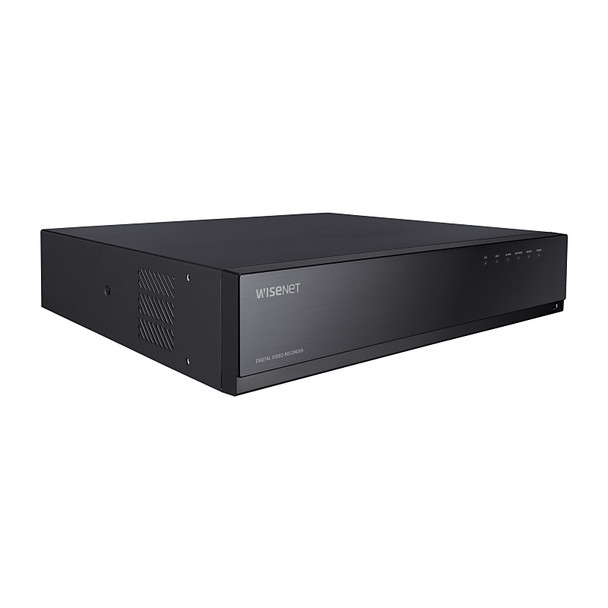

Hanwha Vision HRX-1635-30TB 16 Channel 8MP Pentabrid DVR with 30TB HDD Included
The Hanwha Vision HRX-1635-30TB is a professional 16-channel Pentabrid DVR designed for hybrid analog and IP surveillance environments. Supporting AHD, HDTVI, HDCVI, CVBS, and IP formats, it allows up to 18 total channels (16 analog + 2 IP). With 30TB HDD Included and support for up to 48TB across 8 SATA drives, it offers robust and scalable storage. The system records at up to 8MP resolution and uses H.265, H.264, and MJPEG compression to optimize storage and network performance. It features dual HDMI and VGA outputs supporting 4K and Full HD display. The HRX-1635-30TB includes smart event detection, smart search for network cameras, and remote monitoring through Wisenet Mobile, WebViewer, SSM, and Wisenet Viewer, delivering a flexible and powerful recording platform for advanced security needs.
Key Features:
- 16 Channels; supports 16 analog inputs and 2 additional IP channels, up to 18CH total
- 8MP Recording Resolution; delivers ultra-high-definition video for critical surveillance
- 30TB HDD Included; supports scalable storage up to 48TB with 8 SATA drive bays
- H.265, H.264, and MJPEG Compression; maximizes recording efficiency and storage usage
- HDMI and VGA Outputs; allows dual monitor support with up to 4K and Full HD resolutions
- 128Mbps Recording Bandwidth; ensures smooth performance for multi-channel recording
- Smart Event Triggers; includes motion detection, tampering, video loss, and IP camera analytics
- Smart Search (Network Cameras); enables fast, event-based review of recorded footage
- Coaxial Control Support; allows PTZ functionality over analog video formats
- USB and Network Backup; supports secure export in multiple file formats
- Remote Access; via Wisenet Mobile app, WebViewer, SSM, and Wisenet Viewer platforms
- Embedded Linux OS; offers stability and 24/7 operational reliability
- 2-Way Audio Support; includes 16 audio input channels and 1 output for enhanced monitoring
- Advanced Security Features; includes user permissions, encryption, IP filtering, and access logs
Downloads
Additional Information
|
Capacity for each disk:
|
up to 6TB
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Black
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
440 x 88 x 384.8 mm (17.32 x 3.46 x 15.15 in)
|
|
Hard Drive Ports:
|
8 SATA Ports
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
48 TB
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
30 TB
|
|
Recorder Technology:
|
Digital Video Recorder (DVR)
|
