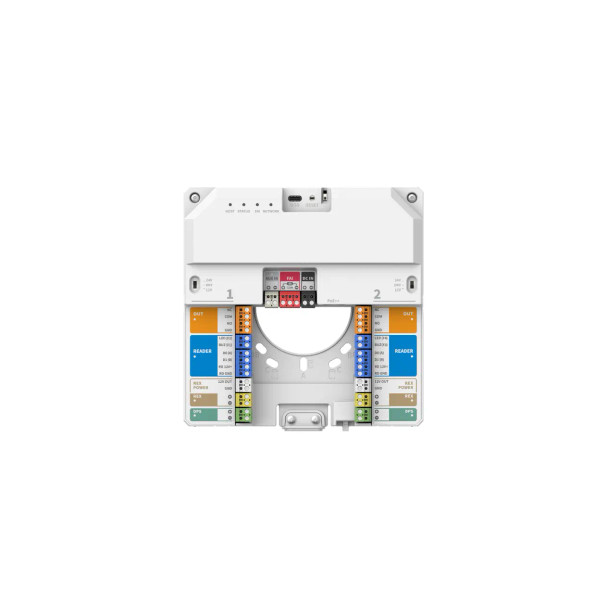

Hanwha Vision NHP-P200 Two-Door PoE++ IP Access Control Controller
The Hanwha Vision NHP-P200 delivers high-performance access control for two-door applications with advanced PoE++ power capability and comprehensive security features. This IP controller supports up to 4 OSDP readers with dual reader ports, 50,000 cardholder capacity, and 250,000 offline event storage for robust access management.
Built with enterprise-grade security including TLS 1.3 and AES-256 encryption, this controller ensures secure communication and data protection. The flexible input/output configuration includes 5 supervised inputs, up to 4 unsupervised OSDP flex inputs, and 2 Form-C relay outputs with selectable power options for maximum deployment flexibility.
Designed for professional access control installations, the NHP-P200 features built-in tamper monitoring, onboard power monitoring with memory retention, and operates reliably across extended temperature ranges from -4°F to 140°F with comprehensive humidity tolerance.
Key Features:
- Two-door PoE++ powered operation eliminates separate power supplies; simplifies installation and reduces infrastructure costs
- 50,000 cardholder capacity with 250,000 offline events; supports large facilities with extensive audit trail capabilities
- 4 OSDP reader support with Wiegand compatibility; enables flexible reader deployment and future technology migration
- TLS 1.3 and AES-256 encryption ensures secure communication; protects sensitive access control data transmission
- 5 supervised inputs plus 4 OSDP flex inputs; provides comprehensive monitoring for door sensors, alarms, and auxiliary devices
- Form-C relay outputs with selectable power options; offers wet/dry contact flexibility for various connected devices
- Extended operating temperature range -4°F to 140°F; reliable operation in challenging environmental conditions
