Description

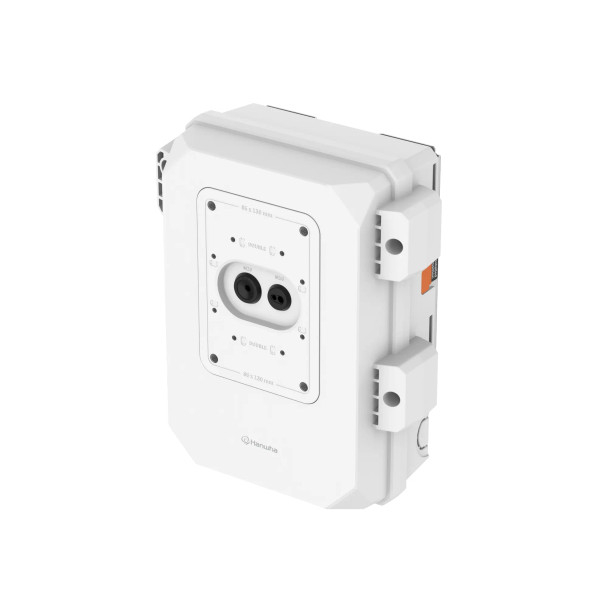

Hanwha Vision SBP-050NBW White Outdoor Camera Cabinet
The Hanwha Vision SBP-050NBW is a durable outdoor camera cabinet designed to protect security cameras in harsh environmental conditions. Constructed from high-quality PC (polycarbonate) and aluminum materials, this white housing provides superior protection with IP66, IK10, and NEMA 4X ratings.
With a maximum load capacity of 11.02 lbs and operating temperature range from -40°F to 149°F, this cabinet ensures reliable protection for various camera models. The cabinet features pre-configured conduit holes and mounting hardware for easy installation, making it ideal for outdoor surveillance applications.
Key Features:
- IP66, IK10, and NEMA 4X protection ratings; provides superior weatherproof and vandal-resistant protection
- PC (polycarbonate) and aluminum construction; ensures durability and corrosion resistance
- Operating temperature range -40°F to 149°F; maintains performance in extreme weather conditions
- 11.02 lb maximum load capacity; supports various camera sizes and weights
- Pre-configured conduit holes with mounting hardware; enables quick professional installation
Downloads
Datasheet
Hanwha-Vision-SBP-050NBW-Datasheet-A1
User Manual
Hanwha-Vision-SBP-050NBW-User-Manual-A1
Datasheet
Hanwha-Vision-SBP-050NBW-Datasheet-A1
Additional Information
|
Color:
|
White
|
|
Dimensions:
|
9.45x11.42x4.85in
|
|
Load Capacity (lb):
|
11.02
|
|
Material:
|
PC(Polycarbonate)
Aluminum
|
|
Protection Code:
|
IK10
NEMA 4X
IP66
|
|
Storage Humidity:
|
0% to 95%
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
