Hanwha Vision SLA-F2480DSA 2.4mm Fixed 5MP Doorjamb CCTV Camera Lens

Hanwha Vision SLA-F2480DSA 2.4mm Fixed 5MP Doorjamb CCTV Camera Lens

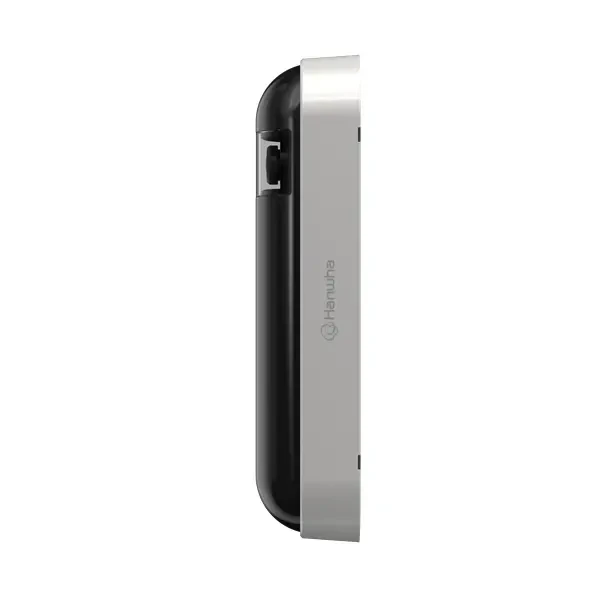

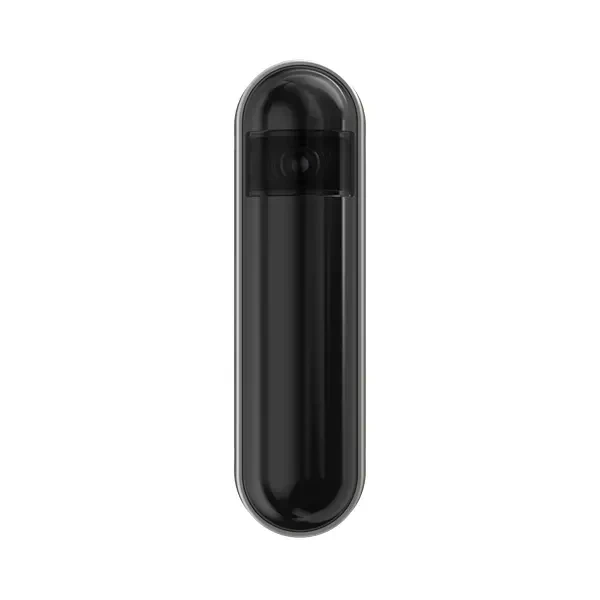

The Hanwha Vision SLA-F2480DSA is a 5MP doorjamb lens module built for the PNM-C20000QB multi-directional camera base unit. Its slim silver plastic housing mounts discreetly in a door frame to capture people entering and exiting, and it connects to the main unit through an RJ12 connection over the included 8m (26.2 ft) cable.

A 1/2.8" CMOS sensor paired with a 2.45mm fixed F2.0 lens delivers a 123° horizontal, 91° vertical and 159° diagonal field of view, while flexible ±30° panning lets installers fine-tune the angle after mounting. The module offers 0.08 Lux minimum illumination in both color and B/W and operates from 14°F to 131°F at up to 95% RH.

Key Features:

• 5MP lens module with 1/2.8" CMOS sensor; captures detailed images at entrances.
• 2.45mm fixed lens, F2.0; provides wide coverage close to the door.
• 123° horizontal, 91° vertical, 159° diagonal field of view; covers the full doorway.
• Flexible ±30° pan; allows precise aiming after installation.
• 0.08 Lux minimum illumination (color and B/W); delivers usable images in dim corridors.
• 8m (26.2 ft) cable included; gives placement flexibility relative to the base unit.
• Compatible with PNM-C20000QB; integrates with the Hanwha modular multi-sensor platform.
• 14°F to 131°F operating temperature; suits typical indoor entrance environments.
