Hanwha Vision SLA-F2480WA 5MP 2.4mm Waterproof Lens Module

Hanwha Vision SLA-F2480WA 5MP 2.4mm Waterproof Lens Module

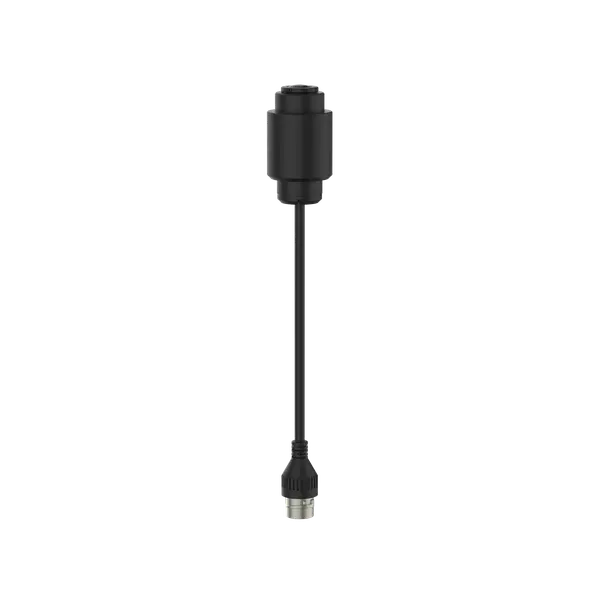

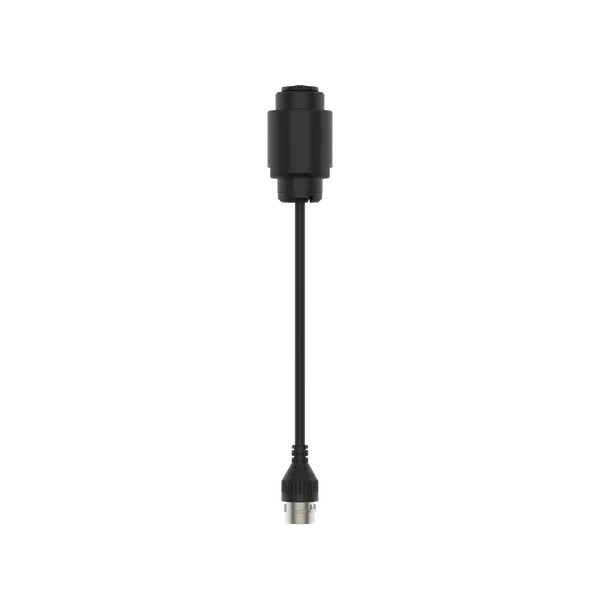

The Hanwha Vision SLA-F2480WA is a 5MP waterproof lens module engineered as a remote sensor unit for the Hanwha PNM-C20000QB multi-directional camera platform. The compact cylindrical body places a 1/2.8" CMOS imager behind a 2.4 mm fixed-focal lens for a 128° horizontal / 92° vertical field of view — enough coverage to survey wide entryways, small parking lots, or intersection corners from a single sensor.

Housed in metal with a black finish and rated IP66 and NEMA 4X, the module is engineered for direct outdoor and washdown installations without a supplementary enclosure. An integrated 8-meter (26.2 ft) cable terminates in an RJ12 connector that plugs directly into the PNM-C20000QB main unit, allowing the sensor to be positioned around building corners, under eaves, at doorways, or on separate poles — up to 8 meters from the main unit — while keeping the main body concealed in a protected location.

The sensor delivers 0.1 lux minimum illumination in both color and monochrome modes at 1/30 second / 30 IRE, and operates across -22 °F to 131 °F with humidity tolerance up to 95% RH. UL 62368-1 and IEC 62368-1 safety certification, plus FCC, CE, UKCA, VCCI, RCM, and KC EMC compliance, make the SLA-F2480WA suitable for global enterprise and government deployments.

Key Features:

• 5 MP resolution with 1/2.8" CMOS sensor; delivers high-detail surveillance imagery for identification-grade recording
• 2.4 mm fixed-focal lens with F2.4 aperture; wide 128° horizontal field of view suits entryways, parking lots, and intersection coverage
• 128° H / 92° V / 172° diagonal field of view; captures broad scenes from a single sensor unit
• 0.1 lux minimum illumination color and monochrome at 1/30 s / 30 IRE; usable imagery in dim conditions
• Compact cylindrical form factor (ø1.38 x 2.49 in); fits discreet installations at doorways, under eaves, and around corners
• Integrated 8 m (26.2 ft) RJ12 cable; positions the sensor away from the main unit for flexible camera placement
• IP66 and NEMA 4X rated metal housing; direct outdoor and washdown installation without an additional enclosure
• Operating range -22 °F to 131 °F with 0-95% RH humidity tolerance; suitable for most outdoor and harsh interior environments
• Compatible with the Hanwha PNM-C20000QB multi-directional camera platform; remote sensor unit for that host
• UL 62368-1, CAN/CSA C22.2 No. 62368-1 safety certified; FCC, CE/UKCA, VCCI, RCM, KC EMC compliant for global markets
