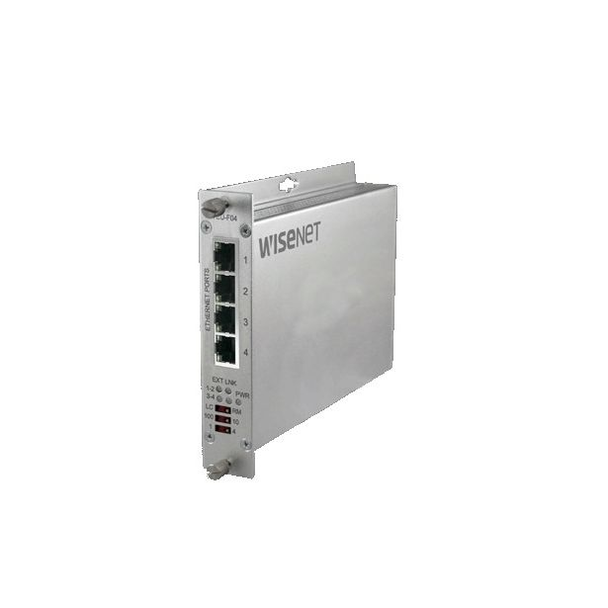

Hanwha Vision TEU-F04 4 Port Ethernet-over-UTP Extender with Pass-Through PoE

Hanwha Vision TEU-F04 4 Port Ethernet-over-UTP Extender with Pass-Through PoE

The Hanwha Vision TEU-F04 is a professional 4-channel Ethernet-over-UTP extender designed for large-scale IP surveillance deployments requiring extended network reach. This rack-mountable device simultaneously extends four Ethernet connections up to 3,000 feet at 10 Mbps or 2,000 feet at 100 Mbps over standard UTP cable, making it ideal for enterprise-level security installations. The integrated pass-through PoE capability eliminates the need for separate power infrastructure at remote locations, significantly reducing installation complexity and operational costs.

Built for professional environments, the TEU-F04 features a standard 1RU rack-mount form factor with robust construction suitable for data centers and equipment rooms. The device operates reliably in extended temperature ranges from -40°C to +75°C with automatic resettable current limiters providing protection against power surges. LED status indicators provide real-time monitoring of power, Ethernet link, and extended link activity for each channel, ensuring optimal system performance and simplified troubleshooting.

Key Features:

• Four-channel simultaneous Ethernet extension up to 3,000 feet at 10 Mbps or 2,000 feet at 100 Mbps; enables comprehensive network expansion for multi-camera surveillance installations.
• Pass-through PoE support for all four channels meeting IEEE 802.3af standard; delivers both power and data through single UTP cables, eliminating need for remote power supplies.
• Professional 1RU rack-mount design with standard 19-inch width; provides secure installation in data centers and equipment rooms with efficient space utilization.
• Extended temperature operation from -40°C to +75°C with >100,000 hours MTBF; ensures reliable performance in harsh industrial and outdoor environments.
• DIP switch configuration for data rate selection and operating modes; offers flexible optimization for specific installation requirements and distance limitations.
• LED status indicators for power and link activity on each channel; provides real-time system monitoring and simplified troubleshooting capabilities.
• Automatic resettable current limiters with solid-state protection; safeguards connected devices against power surges and electrical faults.
