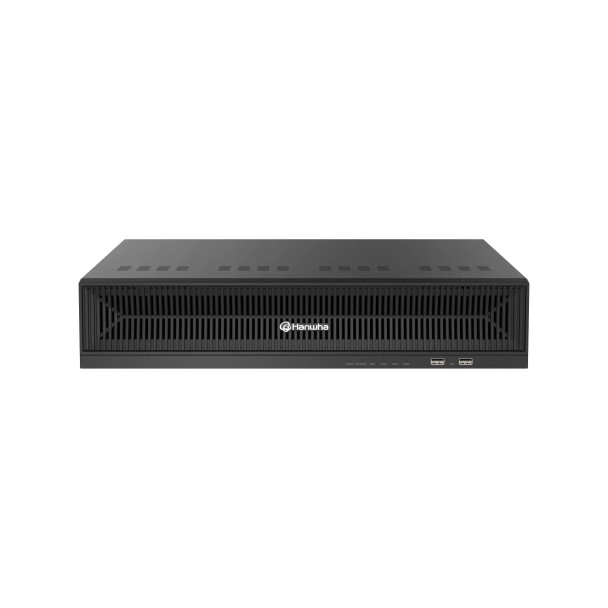

Hanwha Vision WRN-1632S-18TB 32 Channel Network Video Recorder with 18TB HDD Included, Linux OS
The Hanwha Vision WRN-1632S-18TB is a high-performance 32-channel network video recorder engineered for surveillance systems that leverage the Wave VMS platform for intelligent video management. Preloaded with embedded Ubuntu 22.04 LTS, this unit includes 18TB HDD Included and supports storage expansion up to 40TB using four SATA drive bays. Offering up to 250Mbps of recording throughput, it features 16 built-in PoE/PoE+ ports with a 200W total power budget for direct IP camera connectivity. Dual HDMI and DisplayPort outputs, AI metadata support, CMS compatibility, and a compact 1U rackmount design make the WRN-1632S-18TB an ideal solution for scalable and efficient surveillance installations.
Key Features:
- 32 IP Channels; supports AI-enhanced surveillance with seamless Wave VMS integration
- 18TB HDD Included; expandable up to 40TB across four internal SATA bays
- 250Mbps Recording Throughput; enables smooth high-resolution multi-stream video capture
- Wave VMS Support; full compatibility with Wave client, mobile app, and Cloud Sync
- Embedded Linux OS; Ubuntu 22.04 LTS ensures secure and stable operation
- Quad-Core CPU and 8GB DDR4 RAM; supports responsive and reliable performance
- Dual Monitor Outputs; HDMI and DisplayPort allow flexible local monitoring configurations
- 16 PoE/PoE+ Ports; 10/100 Mbps ports with a 200W power budget for easy camera installation
- Dual WAN Ethernet Ports; 2× RJ-45 1Gbps network interfaces for advanced networking
- Audio Output; 1-channel audio for event-based playback and live monitoring
- USB Ports; 2× USB 2.0 (front), 2× USB 3.0 (rear) for export and peripheral support
- Power Supply; 100–240V AC input with maximum 340W consumption
- Rackmount 1U Design; compact form factor (440 × 89.8 × 428.4 mm) for professional deployments
- Secure Architecture; CMS integration, remote access, and AI-enhanced smart search functions
Downloads
Datasheet
Hanwha-Vision-WRN-1632S-4TB-Datasheet-A1
Popular Search
Additional Information
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
32 Channels
|
|
Dimensions:
|
440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.86 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Max. Storage Capacity:
|
40 TB
|
|
Pre-Installed Storage:
|
18 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
