Description

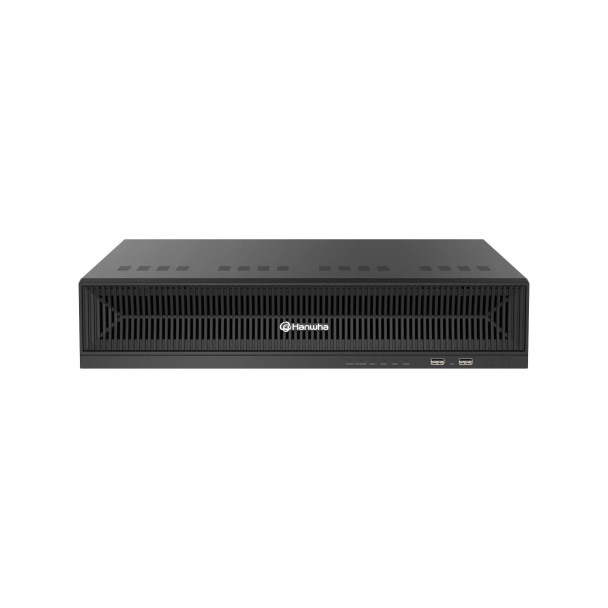

Hanwha Vision WRN-1632S-30TB 32 Channel Network Video Recorder with 30TB HDD Included, Linux OS
The Hanwha Vision WRN-1632S-30TB is a high-capacity 32-channel network video recorder optimized for Wave VMS platform integration, delivering reliable and scalable performance for professional surveillance environments. Preloaded with embedded Ubuntu 22.04 LTS, this model includes 30TB HDD Included and supports storage expansion up to 40TB across four SATA drive bays. With up to 250Mbps of recording throughput and 16 integrated PoE/PoE+ ports offering a total 200W power budget, the WRN-1632S-30TB simplifies IP camera deployment while ensuring high-quality video capture. Dual HDMI and DisplayPort outputs, AI metadata compatibility, and a compact 1U rackmount design make this NVR ideal for enterprise-grade video surveillance applications.
Key Features:
- 32 IP Channels; enables high-resolution surveillance with AI metadata support
- 30TB HDD Included; expandable up to 40TB using four SATA drive bays
- 250Mbps Recording Throughput; ensures efficient multi-channel recording and playback
- Wave VMS Support; full integration with Wave client, mobile app, and Cloud Sync
- Embedded Linux OS; preloaded with Ubuntu 22.04 LTS for secure, stable operation
- Quad-Core CPU and 8GB DDR4 RAM; ensures responsive and reliable system performance
- Dual Monitor Outputs; HDMI and DisplayPort for flexible local configuration and monitoring
- 16 PoE/PoE+ Ports; built-in ports with 10/100 Mbps connectivity and 200W total PoE power budget
- Dual WAN Ethernet Ports; 2× RJ-45 1Gbps for robust network management
- Audio Output; 1-channel RCA output for event and live audio monitoring
- USB Ports; 2× USB 2.0 (front), 2× USB 3.0 (rear) for backup and peripheral devices
- Power Supply; 100–240V AC input with maximum 340W power consumption
- Rackmount 1U Design; compact chassis with dimensions of 440 × 89.8 × 428.4 mm
- Secure System Architecture; supports CMS integration, AI-enhanced smart search, and remote access functionality
Downloads
Datasheet
Hanwha-Vision-WRN-1632S-4TB-Datasheet-A1
Popular Search
Additional Information
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
32 Channels
|
|
Dimensions:
|
440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.86 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Max. Storage Capacity:
|
40 TB
|
|
Pre-Installed Storage:
|
30 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
