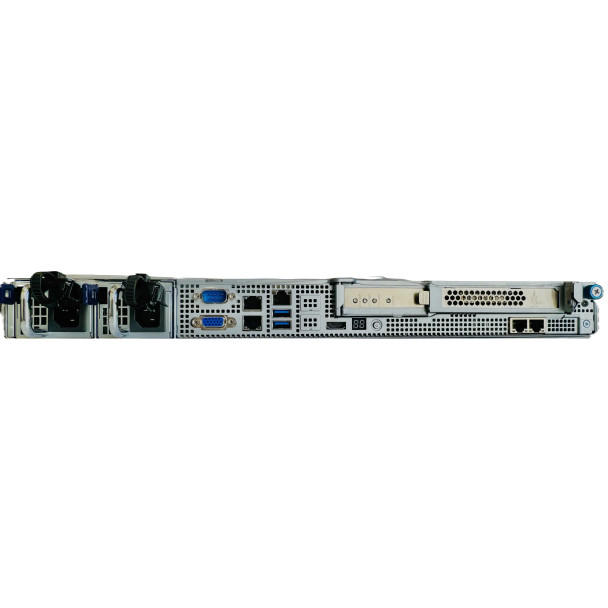

Hanwha Vision WRR-P-E201L-48TB Video Server & NVR with 48TB HDD Included, Linux OS
The Hanwha Vision WRR-P-E201L-48TB Video Server & NVR is a robust Linux-based 1U rackmount system designed to support high-capacity video surveillance operations. With 48TB of raw video-optimized storage and support for RAID 0, 1, 5, 6, and 10 configurations, this server ensures reliable, long-term recording performance. Preloaded with Wisenet WAVE VMS and bundled with four Wave Professional licenses, it enables quick deployment and seamless integration with Wisenet and ONVIF-conformant IP cameras. The server operates on Ubuntu 22.04 LTS, providing a secure and open-source environment ideal for scalable installations. It features dual 480GB SSDs in RAID 1 for OS and application stability, powered by an Intel Xeon processor and 16GB of DDR4 RAM to manage up to 470Mbps of recording throughput. Designed for shallow-depth rack installations, the WRR-P-E201L-48TB includes hot-swappable bays, IPMI management, a sliding rack rail kit, and all necessary peripherals for efficient setup.
Key Features:
- Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
- Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
- 48TB internal HDD storage with RAID support; delivers reliable long-term video storage.
- Dual 480GB SSDs in RAID 1; dedicated OS drives for faster and more secure system performance.
- Intel Xeon processor with 16GB DDR4 RAM; supports high-demand video processing.
- Supports up to 470Mbps recording throughput; suitable for enterprise-scale deployments.
- Dual 1GbE network ports with optional 10GbE; offers flexible and high-speed connectivity.
- 1U rackmount shallow-depth chassis; optimized for space-constrained environments.
- Runs on Ubuntu 22.04 LTS; provides a secure and adaptable Linux-based operating system.
- Supports Wisenet and ONVIF conformant IP cameras; ensures system interoperability.
- Includes sliding rail kit with cable management and USB keyboard/mouse; enhances ease of installation and use.
- 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; ensures maximum uptime and data security.
Downloads
Additional Information
Compliance:
|
NDAA Compliant
|
Dimensions:
|
440 × 498 × 44 mm (17.3" × 19.6" × 1.7")
|
Environmental:
|
Indoor
|
Hard Drive Ports:
|
4 SATA Ports
|
Max. Storage Capacity:
|
80 TB
|
Pre-Installed Storage:
|
48 TB
|
Recorder Technology:
|
Video Server
|
Warranty:
|
5-year Manufacturer Warranty
|
