Description

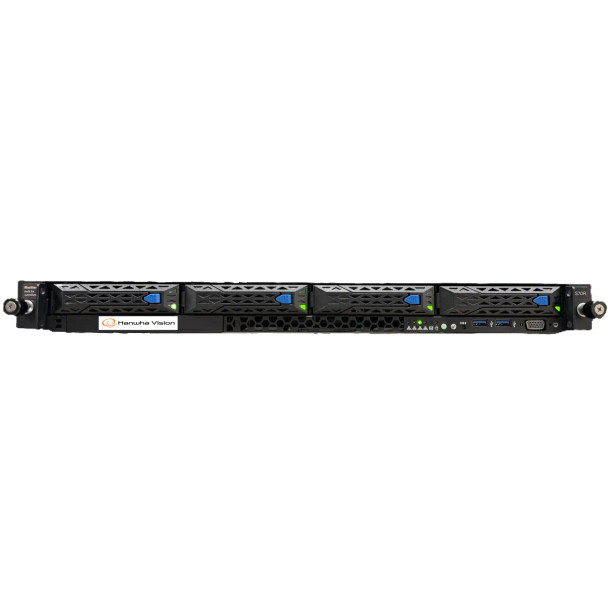

Hanwha Vision WRR-P-E201L-64TB Video Server & NVR with 64TB HDD Included, Linux OS
The Hanwha Vision WRR-P-E201L-64TB Video Server & NVR is a high-capacity, Linux-based 1U rackmount solution engineered for scalable and reliable video surveillance environments. Equipped with 64TB of raw video-optimized storage and 24/7 duty cycle drives, it supports RAID 0, 1, 5, 6, and 10 to ensure data protection and retention over time. Preloaded with Wisenet WAVE VMS and bundled with four Wave Professional licenses, it allows rapid deployment and seamless integration with Wisenet and ONVIF-conformant IP cameras. The server operates on Ubuntu 22.04 LTS, providing a secure, flexible, and open-source platform for professional surveillance systems. With dual 480GB SSDs in RAID 1 for the OS, an Intel Xeon processor, and 16GB DDR4 RAM, the system delivers up to 470Mbps of recording throughput for demanding multi-camera installations. Its shallow-depth 1U chassis, front hot-swappable bays, IPMI support, and complete peripheral package make it ideal for enterprise-class deployments in limited spaces.
Key Features:
- Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
- Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
- 64TB internal HDD storage with RAID support; delivers reliable long-term video storage.
- Dual 480GB SSDs in RAID 1; dedicated OS drives for faster and more secure system performance.
- Intel Xeon processor with 16GB DDR4 RAM; supports high-demand video processing.
- Supports up to 470Mbps recording throughput; ideal for multi-stream surveillance environments.
- Dual 1GbE network ports with optional 10GbE; offers flexible and high-speed connectivity.
- 1U rackmount shallow-depth chassis; optimized for space-constrained environments.
- Runs on Ubuntu 22.04 LTS; provides a secure and adaptable Linux-based operating system.
- Supports Wisenet and ONVIF conformant IP cameras; ensures system interoperability.
- Includes sliding rail kit with cable management and USB keyboard/mouse; enhances ease of installation and use.
- 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; ensures maximum uptime and data security.
Downloads
Additional Information
Compliance:
|
NDAA Compliant
|
Dimensions:
|
440 × 498 × 44 mm (17.3" × 19.6" × 1.7")
|
Environmental:
|
Indoor
|
Hard Drive Ports:
|
4 SATA Ports
|
Max. Storage Capacity:
|
80 TB
|
Pre-Installed Storage:
|
64 TB
|
Recorder Technology:
|
Video Server
|
Warranty:
|
5-year Manufacturer Warranty
|
