Description

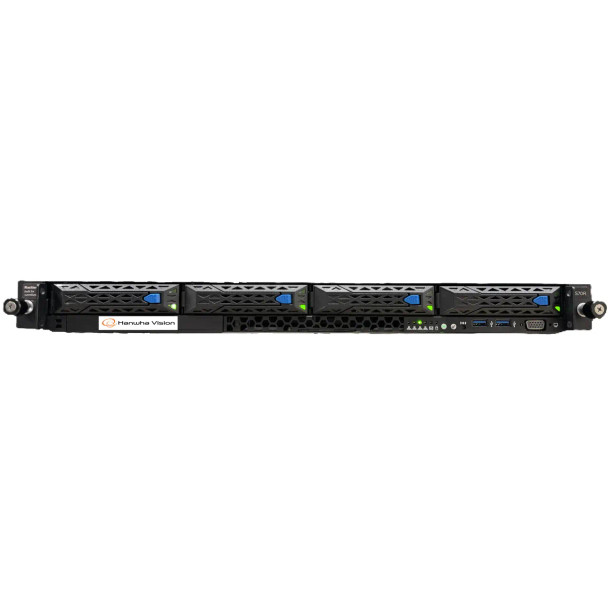

Hanwha Vision WRR-P-E201W-32TB Video Server & NVR with 32TB HDD Included, Windows IoT OS
The Hanwha Vision WRR-P-E201W-32TB Video Server & NVR is a compact, Windows IoT-based 1U rackmount solution engineered for streamlined video surveillance management. It comes preloaded with Wisenet WAVE VMS and includes four Wave Professional licenses, allowing quick integration with Wisenet and ONVIF-compliant IP cameras. With 32TB of raw video-optimized storage using 24/7 duty cycle drives and support for RAID 0, 1, 5, 6, and 10, the system offers stable and secure long-term retention. The WRR-P-E201W-32TB runs on Windows 10 IoT Enterprise LTSC 2021, providing a secure and manageable environment ideal for integrated enterprise deployments. An Intel Xeon processor and 16GB of DDR4 RAM power the server, while dual 480GB SSDs in RAID 1 ensure reliable and responsive OS performance. Designed for ease of installation in tight spaces, it features front hot-swappable drive bays, IPMI remote management, and includes a full set of accessories including rack rails, keyboard, and mouse.
Key Features:
- Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
- Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
- 32TB internal HDD storage with RAID support; delivers reliable long-term video storage.
- Dual 480GB SSDs in RAID 1; dedicated OS drives for faster and more secure system performance.
- Intel Xeon processor with 16GB DDR4 RAM; supports high-demand video processing.
- Supports up to 470Mbps recording throughput; suitable for multi-stream surveillance environments.
- Dual 1GbE network ports with optional 10GbE; offers flexible and high-speed connectivity.
- 1U rackmount shallow-depth chassis; optimized for space-constrained environments.
- Runs on Windows 10 IoT Enterprise LTSC 2021; provides a secure and manageable operating system.
- Supports Wisenet and ONVIF conformant IP cameras; ensures system interoperability.
- Includes sliding rail kit with cable management and USB keyboard/mouse; enhances ease of installation and use.
- 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; ensures maximum uptime and data security.
Downloads
Additional Information
Compliance:
|
NDAA Compliant
|
Dimensions:
|
440 × 498 × 44 mm (17.3" × 19.6" × 1.7")
|
Environmental:
|
Indoor
|
Hard Drive Ports:
|
4 SATA Ports
|
Max. Storage Capacity:
|
80 TB
|
Pre-Installed Storage:
|
32 TB
|
Recorder Technology:
|
Video Server
|
Warranty:
|
5-year Manufacturer Warranty
|
