Description

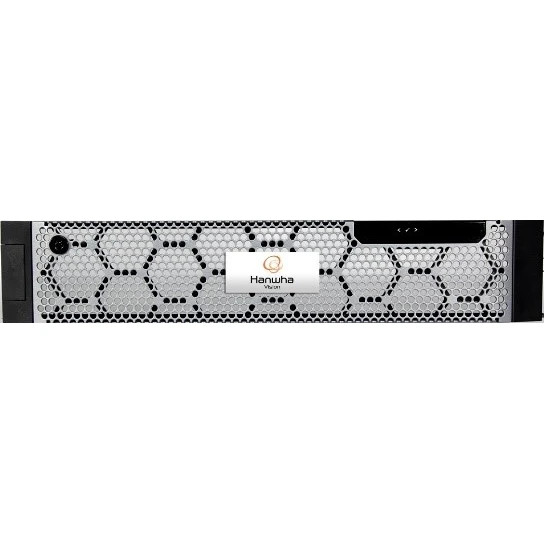

Hanwha Vision WRR-P-S204L-112TB Video Server & NVR with 112TB HDD Included, Linux OS
The Hanwha Vision WRR-P-S204L-112TB Video Server & NVR is a Linux-based 2U rackmount solution engineered for scalable, enterprise-grade video surveillance systems. Featuring 112TB of raw video-optimized storage using 24/7 duty cycle SAS drives, it supports RAID 0, 1, 5, 6, and 10 to deliver secure, redundant, and flexible long-term retention. The system is preloaded with Wisenet WAVE VMS and includes four Wave Professional licenses, enabling fast and seamless integration with Wisenet and ONVIF-compliant IP cameras. Powered by an Intel Xeon processor and 16GB DDR4 RAM, the server delivers up to 470Mbps of recording throughput for high-resolution, multi-camera deployments. Dual 480GB SSDs configured in RAID 1 provide fast, reliable OS performance. Running on Ubuntu 22.04 LTS, the WRR-P-S204L-112TB offers the flexibility and security of an open-source Linux platform. With 12 front-accessible hot-swappable bays, IPMI support, and included rackmount accessories, this server is ideal for professional, high-demand environments.
Key Features:
- Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
- Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
- 112TB internal HDD storage with RAID support; delivers scalable and secure long-term video retention.
- Dual 480GB SSDs in RAID 1; dedicated OS drives for faster and more secure system performance.
- Intel Xeon processor with 16GB DDR4 RAM; supports high-throughput multi-stream video environments.
- Supports up to 470Mbps recording throughput; ideal for large-scale surveillance operations.
- Four RJ45 GbE network ports with optional 10GbE SFP; enables high-speed, redundant network connections.
- 2U rackmount chassis with 12 hot-swappable drive bays; simplifies maintenance and storage expansion.
- Runs on Ubuntu 22.04 LTS; provides a secure, flexible, and open-source Linux operating system.
- Supports Wisenet and ONVIF conformant IP cameras; ensures system-wide compatibility and integration.
- Includes sliding rail kit with cable management and USB keyboard/mouse; streamlines installation and servicing.
- 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; maximizes uptime and protects data integrity.
Downloads
Additional Information
Compliance:
|
NDAA Compliant
|
Dimensions:
|
482 × 772.13 × 86.8 mm (18.97" × 30.39" × 3.41")
|
Environmental:
|
Indoor
|
Hard Drive Ports:
|
12 SATA Ports
|
Max. Storage Capacity:
|
240 TB
|
Pre-Installed Storage:
|
112 TB
|
Recorder Technology:
|
Video Server
|
