Hanwha Vision WRR-P-S204L-200TB Video Server & NVR with 200TB HDD Included, Linux OS

Part Number: WRR-P-S204L-200TB
Write a Review
  • Hanwha Vision WRR-P-S204L-200TB Video Server & NVR with 200TB HDD Included, Linux OS
  • Hanwha Vision WRR-P-S204L-200TB Video Server & NVR with 200TB HDD Included, Linux OS
  • Hanwha Vision WRR-P-S204L-200TB Video Server & NVR with 200TB HDD Included, Linux OS
$35,566.00
$26,045.81
— You save $9,520.19
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Pre-Installed Storage : 200 TB
  • Hard Drive Ports : 12 SATA Ports
  • Max. Storage Capacity : 240 TB Storage Capacity
  • Environmental : Indoor

Description

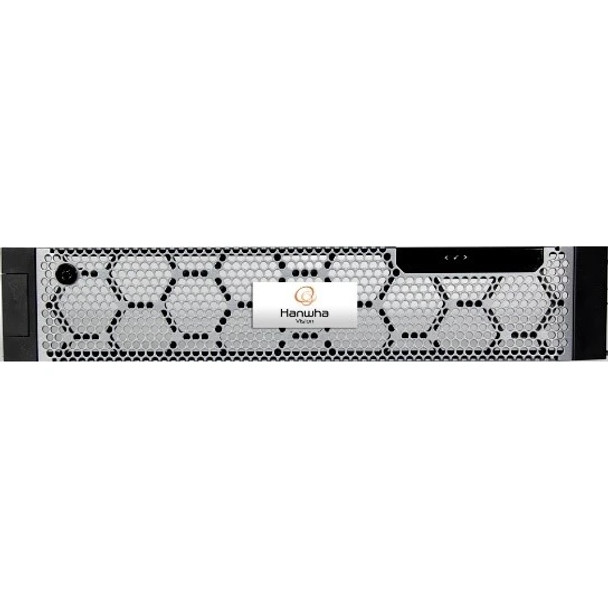

Hanwha Vision WRR-P-S204L-200TB Video Server & NVR with 200TB HDD Included, Linux OS

The Hanwha Vision WRR-P-S204L-200TB Video Server & NVR is a high-capacity, Linux-based 2U rackmount system engineered for enterprise surveillance deployments requiring long-term video retention and dependable performance. Running on Ubuntu 22.04 LTS, the system is preloaded with Wisenet WAVE VMS and includes four Wisenet WAVE Professional licenses for seamless integration with Wisenet and ONVIF-conformant IP cameras. It features 200TB of raw video-optimized storage across twelve front-accessible hot-swappable bays, supporting RAID 0, 1, 5, 6, and 10 for secure and flexible storage configurations. The system is powered by an Intel Xeon processor and 16GB DDR4 RAM, while dual 480GB SSDs in RAID 1 handle OS operations to ensure fast, stable performance. Supporting up to 470Mbps of recording throughput, and equipped with IPMI management, redundant 800W power supplies, and enterprise connectivity options, the WRR-P-S204L-200TB is purpose-built for demanding, mission-critical video environments.

Key Features:

  • Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
  • Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
  • 200TB internal HDD storage with RAID support; enables secure, high-capacity long-term video retention.
  • Dual 480GB SSDs in RAID 1; dedicated OS drives for fast and reliable system operation.
  • Intel Xeon processor with 16GB DDR4 RAM; delivers consistent performance for multi-stream video environments.
  • Supports up to 470Mbps recording throughput; ideal for enterprise-scale surveillance systems.
  • Four RJ45 GbE network ports (optional 2 x 10GbE SFP); offers flexible and high-speed network connectivity.
  • 2U rackmount chassis with 12 hot-swappable drive bays; simplifies service and future expansion.
  • Runs on Ubuntu 22.04 LTS; provides a secure, stable, and open-source platform optimized for surveillance.
  • Supports Wisenet and ONVIF conformant IP cameras; ensures broad compatibility and system integration.
  • Includes sliding rail kit with cable management and USB keyboard/mouse; facilitates easy deployment and maintenance.
  • 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; ensures maximum uptime and data protection.

Additional Information

Compliance:
NDAA Compliant
Dimensions:
482 × 772.13 × 86.8 mm (18.97" × 30.39" × 3.41")
Environmental:
Indoor
Hard Drive Ports:
12 SATA Ports
Max. Storage Capacity:
240 TB
Operating Humidity:
5% to 95% RH
Operating Temperature:
10 °C to 35 °C (50 °F to 95 °F)
Pre-Installed Storage:
200 TB
Recorder Technology:
Video Server
