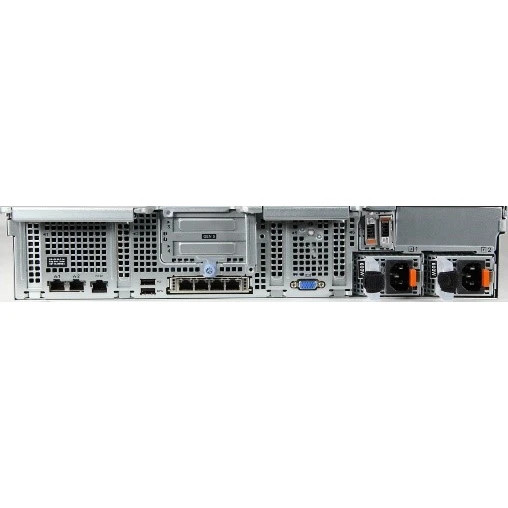

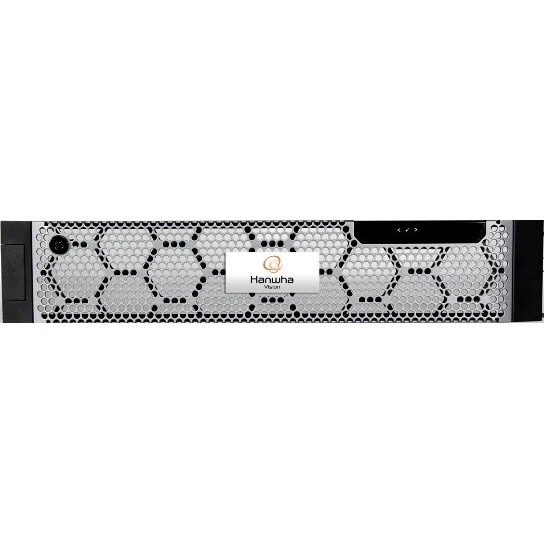

Hanwha Vision WRR-P-S204L-48TB Video Server & NVR with 48TB HDD Included, Linux OS
The Hanwha Vision WRR-P-S204L-48TB Video Server & NVR is a Linux-based 2U rackmount system engineered for small to medium surveillance environments needing reliable performance and scalable storage. Running on Ubuntu 22.04 LTS, it comes preloaded with Wisenet WAVE VMS and includes four Wisenet WAVE Professional licenses, ensuring seamless integration with Wisenet and ONVIF-conformant IP cameras. Featuring 48TB of raw video-optimized storage and twelve front-accessible hot-swappable bays, this system supports RAID 0, 1, 5, 6, and 10 for secure and flexible data protection. The server is powered by an Intel Xeon processor and 16GB DDR4 RAM, with dual 480GB SSDs in RAID 1 handling OS operations for consistent performance. With up to 470Mbps of recording throughput, IPMI remote management, and dual 800W redundant power supplies, the WRR-P-S204L-48TB is built for professional-grade surveillance deployments that prioritize uptime and reliability.
Key Features:
- Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
- Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
- 48TB internal HDD storage with RAID support; provides secure and scalable long-term video retention.
- Dual 480GB SSDs in RAID 1; dedicated OS drives for fast and stable system performance.
- Intel Xeon processor with 16GB DDR4 RAM; supports reliable processing for multi-camera environments.
- Supports up to 470Mbps recording throughput; ideal for small to medium-scale surveillance systems.
- Four RJ45 GbE network ports (optional 2 x 10GbE SFP); offers flexible and high-speed connectivity.
- 2U rackmount chassis with 12 hot-swappable drive bays; enables easy service and storage expansion.
- Runs on Ubuntu 22.04 LTS; delivers a secure, open-source platform optimized for surveillance.
- Supports Wisenet and ONVIF conformant IP cameras; ensures interoperability across devices.
- Includes sliding rail kit with cable management and USB keyboard/mouse; facilitates streamlined deployment.
- 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; ensures data protection and system continuity.
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
482 × 772.13 × 86.8 mm (18.97" × 30.39" × 3.41")
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
48 TB
|
|
Recorder Technology:
|
Video Server
|
