Description

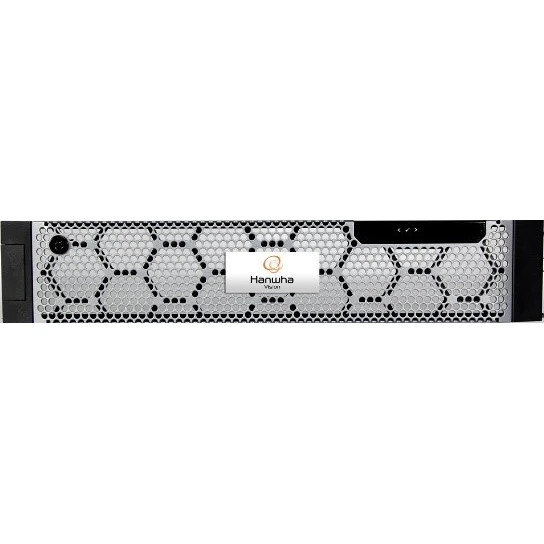

Hanwha Vision WRR-P-S204W-176TB Video Server & NVR with 176TB HDD Included, Windows IoT OS
The Hanwha Vision WRR-P-S204W-176TB Video Server & NVR is a high-capacity 2U rackmount system engineered for professional surveillance environments that require secure, scalable video storage and stable system performance. Running on Windows 10 IoT Enterprise LTSC 2021, this server comes preloaded with Wisenet WAVE VMS and includes four Wisenet WAVE Professional licenses for seamless integration with Wisenet and ONVIF-conformant IP cameras. It offers 176TB of raw video-optimized storage distributed across twelve front-accessible hot-swappable bays, with RAID 0, 1, 5, 6, and 10 support for reliable data protection. The system is powered by an Intel Xeon 4410Y processor and 16GB DDR4 RAM, with dual 480GB SSDs in RAID 1 for the operating system, ensuring fast and dependable operation. With up to 470Mbps of recording throughput, redundant 800W power supplies, and IPMI remote management, the WRR-P-S204W-176TB is ideal for enterprise deployments demanding continuous uptime and long-term retention.
Key Features:
- Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
- Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
- 176TB internal HDD storage with RAID support; provides secure, high-capacity long-term video retention.
- Dual 480GB SSDs in RAID 1; dedicated OS drives for fast and reliable system performance.
- Intel Xeon 4410Y processor with 16GB DDR4 RAM; supports stable processing for high-throughput video environments.
- Supports up to 470Mbps recording throughput; ideal for multi-camera, high-resolution deployments.
- Four RJ45 GbE network ports; enables flexible and high-speed connectivity.
- 2U rackmount chassis with 12 hot-swappable drive bays; allows for simplified service and storage expansion.
- Runs on Windows 10 IoT Enterprise LTSC 2021; offers a secure and optimized OS platform for surveillance.
- Supports Wisenet and ONVIF conformant IP cameras; ensures broad interoperability and system integration.
- Includes sliding rail kit with cable management and USB keyboard/mouse; facilitates efficient deployment.
- 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; protects data and ensures system continuity.
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
482 × 772.13 × 86.8 mm (18.97" × 30.39" × 3.41")
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
176 TB
|
|
Recorder Technology:
|
Video Server
|
