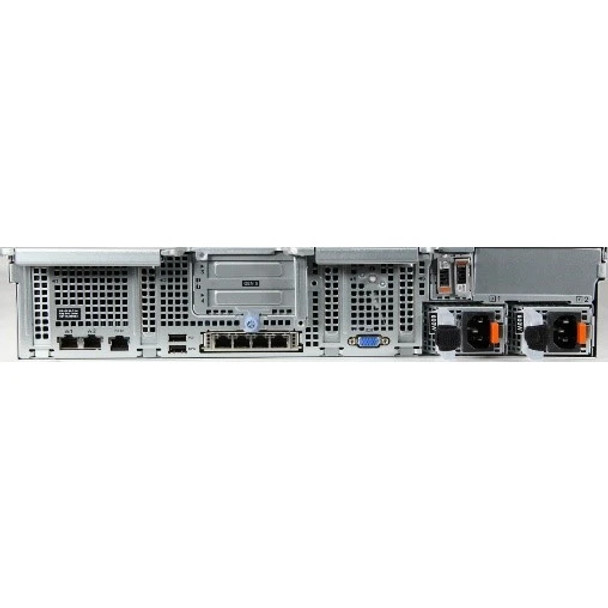

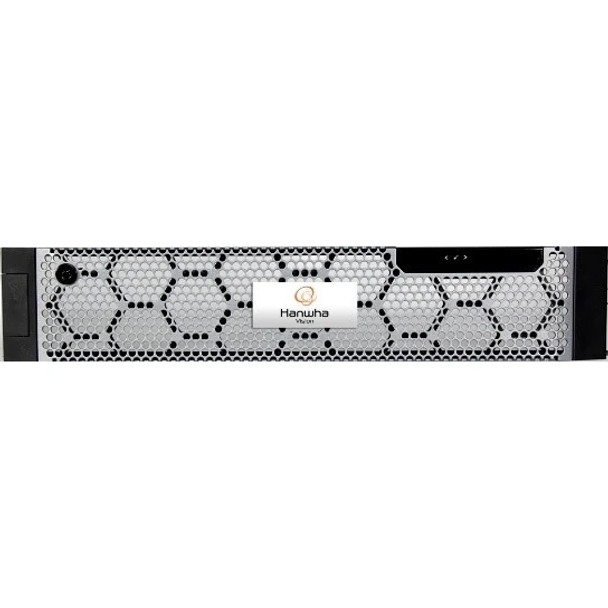

Hanwha Vision WRR-P-S204W-220TB Video Server & NVR with 220TB HDD Included, Windows IoT OS
The Hanwha Vision WRR-P-S204W-220TB Video Server & NVR is a robust 2U rackmount solution built for enterprise surveillance systems requiring extensive video storage and consistent high-performance operation. Running on Windows 10 IoT Enterprise LTSC 2021, the system comes preloaded with Wisenet WAVE VMS and includes four Wisenet WAVE Professional licenses, allowing seamless integration with Wisenet and ONVIF-conformant IP cameras. With 220TB of raw video-optimized storage across twelve front-accessible hot-swappable bays and support for RAID 0, 1, 5, 6, and 10, it ensures flexible and secure long-term data retention. The server features an Intel Xeon 4410Y processor and 16GB DDR4 RAM, while dual 480GB SSDs in RAID 1 provide a dedicated, high-performance environment for the operating system. Supporting up to 470Mbps of recording throughput and equipped with redundant 800W power supplies, IPMI remote management, and multi-GbE networking, the WRR-P-S204W-220TB is ideal for demanding, mission-critical video applications.
Key Features:
- Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
- Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
- 220TB internal HDD storage with RAID support; provides high-capacity, secure long-term video retention.
- Dual 480GB SSDs in RAID 1; dedicated OS drives for fast and reliable system performance.
- Intel Xeon 4410Y processor with 16GB DDR4 RAM; delivers consistent performance for multi-stream video workloads.
- Supports up to 470Mbps recording throughput; ideal for large-scale, high-resolution surveillance deployments.
- Four RJ45 GbE network ports; offers flexible and redundant network connectivity.
- 2U rackmount chassis with 12 hot-swappable drive bays; allows for easy maintenance and storage expansion.
- Runs on Windows 10 IoT Enterprise LTSC 2021; provides a secure, stable OS tailored for surveillance.
- Supports Wisenet and ONVIF conformant IP cameras; ensures broad device compatibility.
- Includes sliding rail kit with cable management and USB keyboard/mouse; simplifies installation and servicing.
- 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; protects system uptime and video data integrity.
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
482 × 772.13 × 86.8 mm (18.97" × 30.39" × 3.41")
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
220 TB
|
|
Recorder Technology:
|
Video Server
|
