Hanwha Vision WRR-P-S206S1-320TB Video Server & NVR with 320TB HDD Included, Windows Server OS

Part Number: WRR-P-S206S1-320TB
Write a Review
  • Hanwha Vision WRR-P-S206S1-320TB Video Server & NVR with 320TB HDD Included, Windows Server OS
  • Hanwha Vision WRR-P-S206S1-320TB Video Server & NVR with 320TB HDD Included, Windows Server OS
  • Hanwha Vision WRR-P-S206S1-320TB Video Server & NVR with 320TB HDD Included, Windows Server OS
$71,910.00
$52,661.37
— You save $19,248.63
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Pre-Installed Storage : 320 TB
  • Hard Drive Ports : 28 SATA Ports
  • Max. Storage Capacity : 480 TB Storage Capacity
  • Environmental : Indoor

Description

Hanwha Vision WRR-P-S206S1-320TB Video Server & NVR with 320TB HDD Included, Windows Server OS

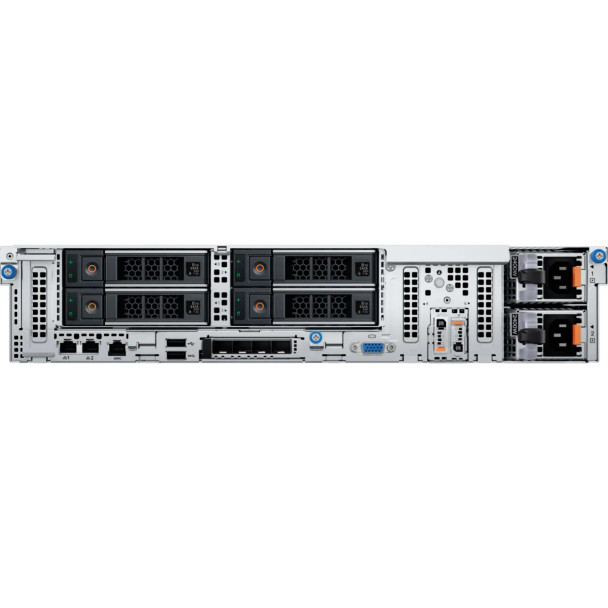

The Hanwha Vision WRR-P-S206S1-320TB Video Server & NVR is a powerful, enterprise-ready 2U rackmount system purpose-built for high-density video surveillance deployments. Offering 320TB of raw video-optimized storage via 24/7 duty cycle SATA drives, it supports RAID 0, 1, 5, 6, and 10 for robust, scalable, and secure long-term data retention. Preloaded with Wisenet WAVE VMS and including four Wave Professional licenses, the server ensures fast, out-of-the-box integration with Wisenet and ONVIF-conformant IP cameras. It runs on Windows Server 2022 and is powered by an Intel Xeon Gold 5416S processor paired with 64GB DDR5 RAM, delivering top-tier performance and responsiveness in demanding multi-stream environments. Dual 480GB SSDs in RAID 1 provide reliable OS operations, while support for up to 470Mbps of recording throughput ensures seamless data handling. With 28 front-accessible hot-swappable drive bays, IPMI management, dual 1400W power supplies, and full rackmount accessories, the WRR-P-S206S1-320TB is designed for maximum uptime and operational efficiency.

Key Features:

  • Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
  • Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
  • 320TB internal HDD storage with RAID support; delivers secure and scalable long-term video retention.
  • Dual 480GB SSDs in RAID 1; dedicated OS drives for fast and reliable system performance.
  • Intel Xeon Gold 5416S processor with 64GB DDR5 RAM; provides exceptional power for enterprise workloads.
  • Supports up to 470Mbps recording throughput; ideal for large-scale, high-resolution video surveillance.
  • Two RJ45 1GbE ports and two 10/25GbE SFP28 ports; enables flexible, high-speed network connectivity.
  • 2U rackmount chassis with 28 hot-swappable drive bays; allows easy maintenance and storage expansion.
  • Runs on Windows Server 2022; ensures compatibility with enterprise IT infrastructure.
  • Supports Wisenet and ONVIF conformant IP cameras; ensures system-wide device interoperability.
  • Includes sliding rail kit with cable management and USB keyboard/mouse; simplifies installation and servicing.
  • 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; maximizes system uptime and data protection.
Replacement of: WRR-P-S206S-288TB

Additional Information

Dimensions:
481.6 × 837 × 86.8 mm (18.96" × 32.95" × 3.41")
Environmental:
Indoor
Hard Drive Ports:
28 SATA Ports
Max. Storage Capacity:
480 TB
Operating Humidity:
10% to 80% RH
Operating Temperature:
10 °C to 30 °C (50 °F to 95 °F)
Pre-Installed Storage:
320 TB
Recorder Technology:
Video Server
