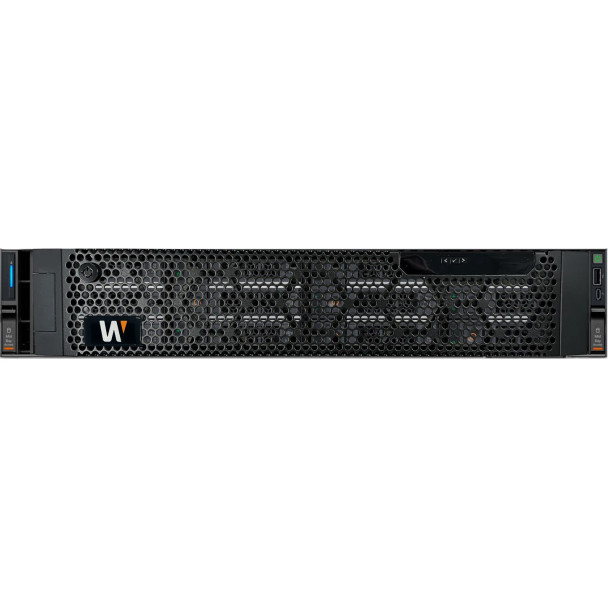

Hanwha Vision WRR-P-S206S1-480TB Video Server & NVR with 480TB HDD Included, Windows Server OS

Part Number: WRR-P-S206S1-480TB
Write a Review
  • Hanwha Vision WRR-P-S206S1-480TB Video Server & NVR with 480TB HDD Included, Windows Server OS
  • Hanwha Vision WRR-P-S206S1-480TB Video Server & NVR with 480TB HDD Included, Windows Server OS
  • Hanwha Vision WRR-P-S206S1-480TB Video Server & NVR with 480TB HDD Included, Windows Server OS
$85,770.00
$62,811.37
— You save $22,958.63
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Pre-Installed Storage : 480 TB
  • Hard Drive Ports : 28 SATA Ports
  • Max. Storage Capacity : 480 TB Storage Capacity
  • Environmental : Indoor

Description

Hanwha Vision WRR-P-S206S1-480TB Video Server & NVR with 480TB HDD Included, Windows Server OS

The Hanwha Vision WRR-P-S206S1-480TB Video Server & NVR is the highest-capacity model in the WRR-P-S206S1 series, purpose-built for enterprise surveillance deployments that demand maximum video storage, performance, and reliability. With 480TB of raw video-optimized storage powered by 24/7 duty cycle SATA drives, the system supports RAID 0, 1, 5, 6, and 10 configurations for scalable, redundant, and secure long-term data retention. Preloaded with Wisenet WAVE VMS and bundled with four Wave Professional licenses, it offers rapid deployment and full compatibility with Wisenet and ONVIF-conformant IP cameras. This server runs on Windows Server 2022 and is driven by an Intel Xeon Gold 5416S processor paired with 64GB DDR5 RAM, enabling high-performance recording and smooth multi-stream processing. Dual 480GB SSDs in RAID 1 ensure fast and resilient OS operation. The 2U rackmount chassis features 28 front-accessible hot-swappable bays, dual 10/25GbE SFP28 ports, IPMI support, and redundant 1400W power supplies—making it ideal for mission-critical, large-scale surveillance infrastructures.

Key Features:

  • Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
  • Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
  • 480TB internal HDD storage with RAID support; provides maximum capacity for secure long-term video retention.
  • Dual 480GB SSDs in RAID 1; dedicated OS drives for fast and reliable system performance.
  • Intel Xeon Gold 5416S processor with 64GB DDR5 RAM; supports high-performance, enterprise-grade video workloads.
  • Supports up to 470Mbps recording throughput; ideal for dense, high-resolution surveillance environments.
  • Two RJ45 1GbE ports and two 10/25GbE SFP28 ports; deliver flexible, high-speed network connectivity.
  • 2U rackmount chassis with 28 hot-swappable drive bays; enables easy maintenance and scalable storage.
  • Runs on Windows Server 2022; integrates seamlessly with modern enterprise IT environments.
  • Supports Wisenet and ONVIF conformant IP cameras; ensures broad interoperability and system flexibility.
  • Includes sliding rail kit with cable management and USB keyboard/mouse; simplifies deployment and servicing.
  • 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; maximizes uptime and safeguards data integrity.
Replacement of: WRR-P-S206S-416TB

Additional Information

Dimensions:
481.6 × 837 × 86.8 mm (18.96" × 32.95" × 3.41")
Environmental:
Indoor
Hard Drive Ports:
28 SATA Ports
Max. Storage Capacity:
480 TB
Operating Humidity:
10% to 80% RH
Operating Temperature:
10 °C to 30 °C (50 °F to 95 °F)
Pre-Installed Storage:
480 TB
Recorder Technology:
Video Server
