Description

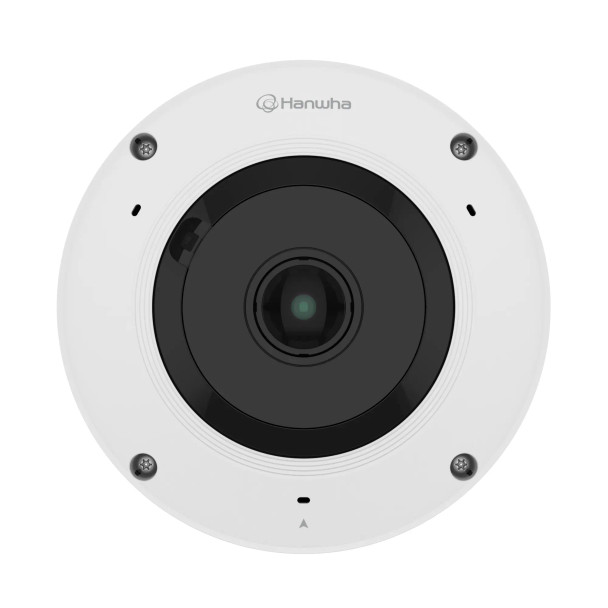

Hanwha Vision XNF-A9014R 12MP Indoor Fisheye IP Security Camera with 1.76mm Lens and Built-In IR
The Hanwha Vision XNF-A9014R is a 12MP AI IR fisheye camera from the Wisenet X series, designed for comprehensive 360° indoor surveillance from a single installation point. Powered by the Wisenet 9 SoC with dual NPU and 4GB of RAM, it delivers AI-based object detection for persons, faces, vehicles, and license plates — along with business intelligence capabilities including people counting, vehicle counting, crowd counting, queue management, and heatmap analysis. The 1/1.6" CMOS sensor achieves a minimum color illumination of 0.02 lux, while WiseIR illumination extends up to 20m (65.61ft) at 850nm.
The 1.76mm fixed stereo graphic type lens provides a full 185° field of view for complete room coverage from ceiling mount, eliminating blind spots in lobbies, retail floors, and open office environments. The camera supports digital PTZ, digital rotation, and up to 5 simultaneous streams. Up to 1TB microSDXC edge storage ensures local recording redundancy. Rated IP42 and operating from -10°C to +55°C, the XNF-A9014R is well-suited for indoor environments. Powered via PoE (802.3af), PoE+ (802.3at), or 12VDC. NDAA compliant with FIPS 140-3 level 3, CC EAL6+ secure element.
Key Features:
- 12MP resolution with 1/1.6" CMOS sensor and 185° fisheye FOV; delivers complete 360° room coverage from a single ceiling-mounted unit, eliminating blind spots.
- 1.76mm fixed stereo graphic lens; provides true hemispherical imaging for accurate dewarped views across all areas of a room.
- Dual NPU AI analytics (object detection, IVA, people/vehicle/crowd counting, heatmap, queue management); enables intelligent, event-driven surveillance responses.
- WiseIR up to 20m (65.61ft) with 850nm; provides effective night vision coverage for medium-range indoor areas.
- True WDR 120dB; produces balanced images in high-contrast lighting conditions such as entrance areas with bright windows.
- Up to 1TB microSDXC edge storage; maintains local recording continuity independent of network availability.
- NDAA compliant with secure element (FIPS 140-3 level 3, CC EAL6+); meets government and enterprise cybersecurity requirements.
- PoE / PoE+ / 12VDC powered; offers flexible installation options for a variety of indoor deployments.
Downloads
Additional Information
|
Aperture:
|
F1.8
|
|
Camera Style:
|
Fisheye
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
ø6.30x2.38in
|
|
Lens Size:
|
1.76mm
|
|
Lens Type:
|
Fixed Lens
|
|
Minimum Illumination (B/W):
|
0.001 Lux
|
|
Minimum Illumination (Color):
|
0.02 Lux
|
|
Power Supply:
|
PoE (IEEE 802.3af)
PoE+ (IEEE802.3at Class 4)
12VDC
|
|
Protection Code:
|
IP42
|
|
Resolution:
|
12MP
|
|
SD Card Support:
|
|
|
Sensor Size:
|
1/1.6"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-50°C to 60°C (-58°F to 140°F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
