Description

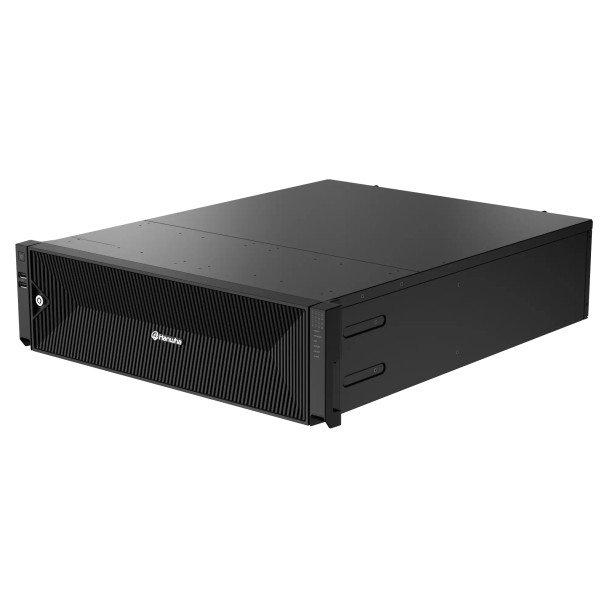

Hanwha Vision XRN-3220B4 32 Channel Network Video Recorder with no HDD Included
The 8K NVR (Intel based), 32Ch, No HDD, 16 SATA HDD bays (up to 10TB per HDD), H.265/H.264/MJPEG, SUNAPI, ONVIF, ARB (Automatic Recovery Backup) & Failover (N+1), Up To 520 Mbps Recording / Up To 200 Mbps Playback, Dual Stream Recording, iSCSI, WiseStream Support, HDMI(x2) Dual Display, Alarm I/O, 2-Way Audio, Maximum Camera Resolution of 32MP Recording/Display, Fisheye Dewarping (Local/CMS), AI Search (Wisenet AI Cameras Only), P2P QR Code, Support for RAID 5/6 (NOTE: Requires a minimum number of HDDs per RAID type), HDD Hot Swap is available in RAID Mode.
Key Features:
- 32CH, 32MP resolution
- SATA 16ea (up to 160TB
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virual channal view
- Dynamic layout
- Built-in browser supportmanagement (up to 100 set)
- Compatible with Wisenet Viewer, Wisenet mobile
- NDAA compliant and TPM integrated
Popular Search
Additional Information
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
NDAA
|
|
Color:
|
Black
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
440.0 x 132.0 x 571.1mm
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
16 SATA Ports
|
|
Material:
|
Metal
|
|
Max. Storage Capacity:
|
160 TB
|
