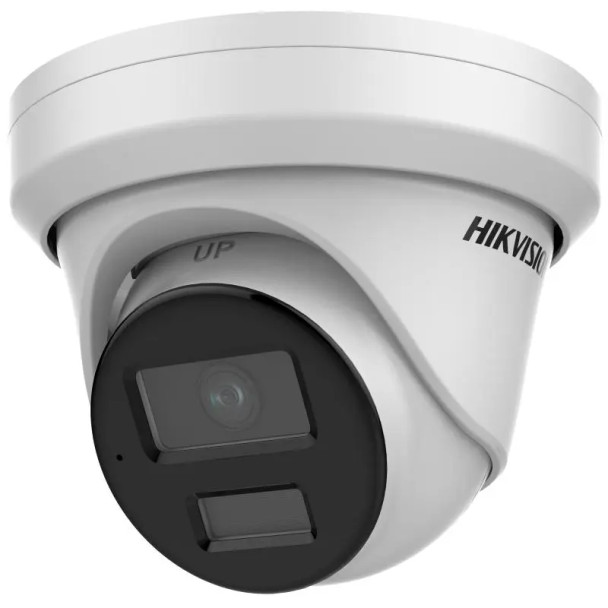

Hikvision DS-2CD3366G2-ISU 2.8MM 6MP Outdoor Turret IP Security Camera with 2.8mm Lens and Built-In IR
The Hikvision DS-2CD3366G2-ISU delivers exceptional 6MP video quality with advanced AcuSense technology, focusing surveillance on human and vehicle targets to dramatically reduce false alarms. Powered by deep learning algorithms, this turret camera offers professional-grade performance with 120 dB true WDR for clear imaging in challenging lighting conditions, and built-in IR illumination extending up to 40 meters for reliable nighttime monitoring.
Designed for outdoor deployment, the camera features IP67-rated weather resistance and supports the Hikvision Embedded Open Platform (HEOP) for third-party application integration. With efficient H.265+ compression technology and PoE support, installation and operation are streamlined while reducing bandwidth and storage requirements. The built-in microphone on the U model enables audio monitoring for comprehensive situational awareness.
Key Features:
- 6MP (3200×1800) high-resolution imaging with 1/2.4" Progressive Scan CMOS sensor; delivers detailed surveillance footage for accurate identification and forensic analysis
- AcuSense technology with human and vehicle classification; reduces false alarms by up to 90% and focuses on genuine security threats
- 120 dB true Wide Dynamic Range (WDR); ensures clear visibility in high-contrast scenes with both bright and dark areas
- 40m IR night vision with smart supplement light; provides reliable 24/7 monitoring with optimized illumination to prevent overexposure
- IP67 weatherproof rating and metal construction; ensures reliable outdoor operation in harsh environmental conditions
- Built-in microphone for audio surveillance; enables sound detection and recording for enhanced situational awareness
- H.265+ compression with up to 16 Mbps bit rate; significantly reduces bandwidth usage and storage costs while maintaining video quality
- PoE (IEEE 802.3af) support with 9W max power consumption; simplifies installation with single-cable solution for power and data
Downloads
Additional Information
|
Aperture:
|
F1.6
|
|
Camera Style:
|
Turret
|
|
Compression:
|
H.265
H.264
H.265+
H.264+
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
5.0x3.8x5.0in
|
|
Field of View (Horizontal):
|
104
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
9 Watts
|
|
Minimum Illumination (B/W):
|
0 Lux with IR
|
|
Minimum Illumination (Color):
|
0.003 Lux
|
|
Night Vision Range (ft):
|
131
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
6MP
|
|
SD Card Support:
|
|
|
Sensor Size:
|
1/2.4"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95%
|
|
Storage Temperature:
|
-30°C to 60°C / -22°F to 140°F
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
