Description

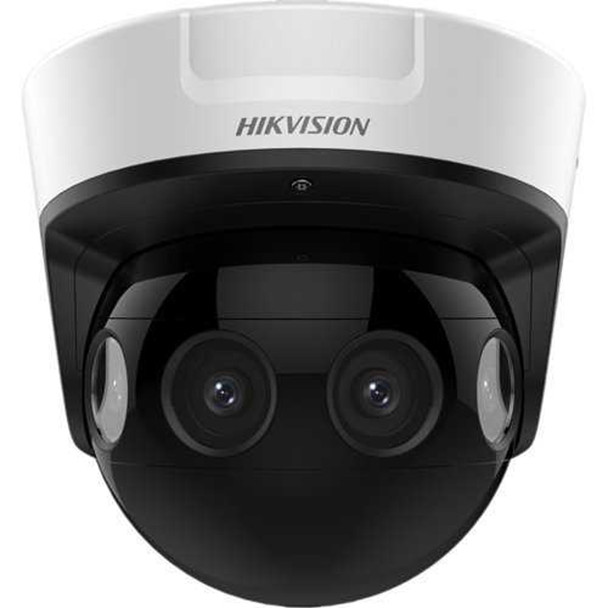

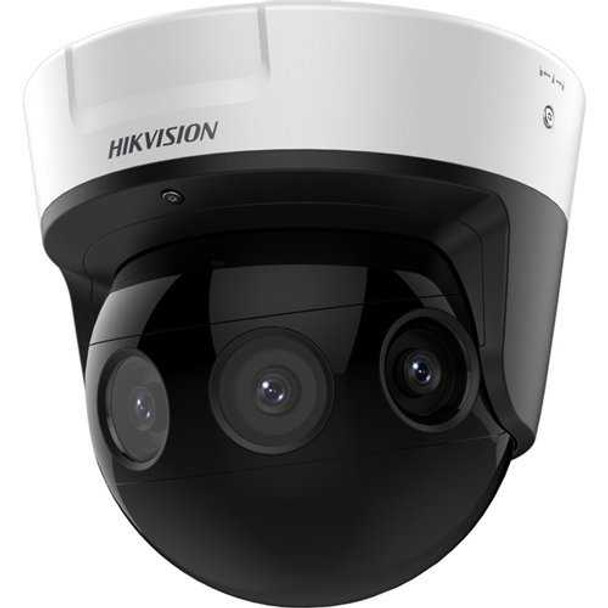

Hikvision DS-2CD6924G0-IHS 2.8MM 8MP 4K Night Vision Outdoor Multi-sensor IP Security Camera with Panoramic View
The Hikvision DS-2CD6924G0-IHS PanoVu Panoramic Outdoor Dome Camera features four lenses to stitch together a 180° horizontal field of view (2.8 mm: 90° vertical) in Panorama view. Modes include Panorama 1 , Panorama + ePTZ, Divided Panorama, and Original for flexible viewing.
Four IR LEDs provide a 66 foot (20 meter) illumination range. H.265+ and H.264+ compression saves bandwidth and data storage costs. IP67 and IK10 protects the camera from harsh outdoor conditions.
Key Features:
- 180° Splicing Image To Present All Scenes Covered by the Camera
- Built-In Heater, Ultra-Low Temperature Start up to -40° F (-40° C)
- Water/Dust (IP67) and Vandal (IK10) Resistant
- Smart Human Density Counting and Public Behavior Analysis To Increase Public Area Safety
- H.265+, H.264+
- 1/1.8" progressive scan CMOS
- Four fixed 2.8 mm lenses
- Four IR LEDs, up to 66 ft (20 m)
- BLC, HLC, 3D DNR, Defog, EIS (only original mode supports)
- ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
- Built-in microSD/SDHC/SDXC slot, up to 256 GB
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Alternative SKUs:
|
DS-2CD6924G0-IHS
HX-OD6924G02
OD6924G02
|
|
Angle of View:
|
180 Degree
|
|
Aperture:
|
F1.4
|
|
Audio Compression:
|
G.711
G.722.1
G.726
PCM
MP2L2
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Heater
|
|
Camera Style:
|
Multi-sensor
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
ISAPI
Ehome
SDK
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
180
|
|
IR LED Quantity:
|
4
|
|
Languages:
|
English
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Mount:
|
M16
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
24 Watts
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
0.0018 lux at F1.6 AGC on
|
|
Minimum Illumination (Color):
|
0.003 Lux at F1.2 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
|
|
Night Vision Range (ft):
|
66
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Hikvision Smart Series
|
|
Protection Code:
|
IK10
IP67
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1/25-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Internet Explorer 8 or above
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
