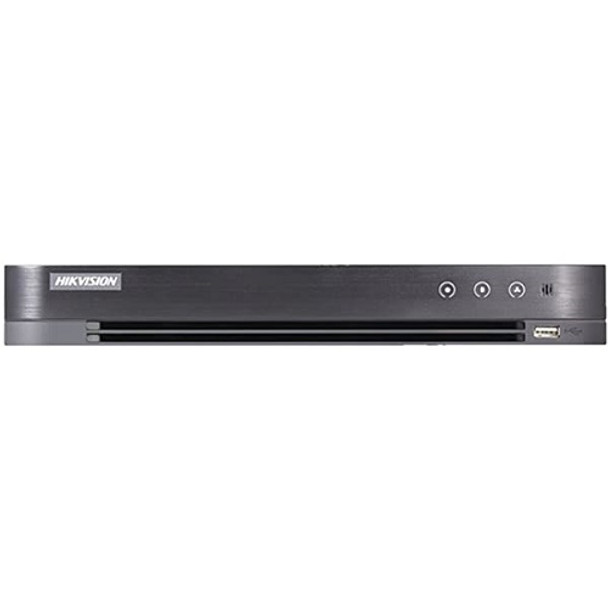

Hikvision DS-7204HQHI-K1-1TB 4 Channel Digital Video Recorder with 1TB Storage

Brand: Hikvision
Part Number: DS-7204HQHI-K1-1TB
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
  • Hikvision DS-7204HQHI-K1-1TB 4 Channel Digital Video Recorder with 1TB Storage
  • Hikvision DS-7204HQHI-K1-1TB 4 Channel Digital Video Recorder with 1TB Storage
  • Hikvision DS-7204HQHI-K1-1TB 4 Channel Digital Video Recorder with 1TB Storage
  • Hikvision DS-7204HQHI-K1-1TB 4 Channel Digital Video Recorder with 1TB Storage
  • Hikvision DS-7204HQHI-K1-1TB 4 Channel Digital Video Recorder with 1TB Storage
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus,
  • Pre-Installed Storage : 1 TB
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 4MP
  • Hard Drive Ports : 1 SATA Port
  • Max. Storage Capacity : 20 TB Storage Capacity

Description

Hikvision DS-7204HQHI-K1-1TB 4 Channel Digital Video Recorder with 1TB Storage

Hikvision’s TurboHD DS-72xxHQI-Kx and DS-72xxHQI-Kx/P Series DVRs feature a range of self-adaptive signal inputs and offer camera support on up to 16 channels. They offer transmission distances of up to 2,630ft (800 m) on 1080p, and 3,940ft (1,200 m) on 720p HD-TVI. Hikvision’s TurboHD DVRs also feature the latest H.265+ encoding technology, which improves recording efficiency and reduces data storage costs.

The DS-72xxHQI-Kx and DS-72xxHQI-Kx/P Series DVR supports advanced analytics such as line crossing, intrusion, and scene change detection. Additionally, all PoC (/P) models support Power-over-Coax (PoC) technology.

Key Features:

  • Analog Video Input 4-ch
  • 1TB HDD Storage included
  • H.265+ / H.265 / H.264+ / H.264 and Dual-Stream Video Compression
  • Full Channel Recording at up to 2 MP
  • HDMI and VGA Output up to 3840 x 2160
  • Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF @ 15 fps
  • Up to 16-ch Synchronous Playback Support

Additional Information

Audio Compression:
G.711u
Capacity for each disk:
up to 10TB
Channel Capacity:
4 Channels
Compression:
H.265 H.265 Plus H.264 H.264 Plus
Hard Drive Ports:
1 SATA Port
LED Indicator:
Languages:
English
Manufacturer Website:
https://us.hikvision.com/en
Max Power Consumption:
40 Watts
Max. Recording Resolution:
4MP
Max. Storage Capacity:
20 TB
Network Interface:
1x RJ-45 10M/100M Base-TX Ethernet
Operating Temperature:
-10 °C to 55 °C (14 °F to 131 °F)
Power Supply:
12 VDC
Pre-Installed Storage:
1 TB
Recorder Technology:
Digital Video Recorder (DVR)
Serial Interface:
1x RS485
USB Interface:
3x USB 2.0 1x USB 3.0
Video Output:
1x VGA 1x HDMI
Warranty:
3-year Manufacturer Warranty
